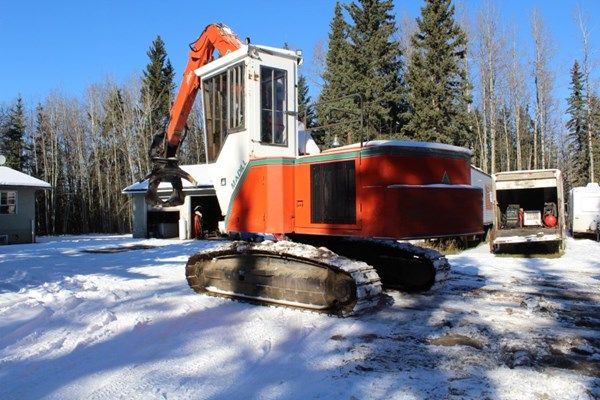

Madill 800
Contents:
Boom
| Max Reach W/ Head | 28.5 ft in (8686.8 mm) |
| Lift Capacity At Max Reach | 11000 lb (4989.52 kg) |
Dimensions
| Overall Width | 10.83 ft in (3300.99 mm) |
| Height To Top Of Cab | 12.17 ft in (3709.42 mm) |
Undercarriage
| Track Length | 14.25 ft in (4343.4 mm) |
| Ground Clearance | 2.34 ft in (711.19 mm) |
| Shoe Size | 26 in (660.4 mm) |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 8.1 psi (55.85 kPa) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB.5.9 |
| Gross Power | 185 hp (138 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight | 66500 lb (30163.9 kg) |
| Fuel Capacity | 230 gal (870.7 L) |
| Hydraulic System Fluid Capacity | 41 gal (155.3 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Max Speed | 3.4 mph (5.5 km/h) |
