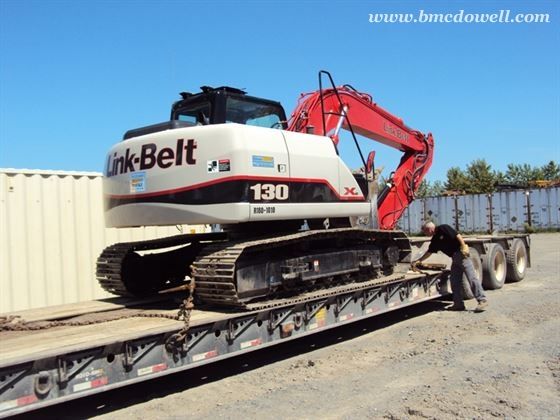

Link-Belt 130X2
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 25 ft in (7620 mm) |
| Shipping Height Of Unit | 9.45 ft in (2880 mm) |
| Max Cutting Height | 28.78 ft in (8770 mm) |
| Max Loading Height | 20.97 ft in (6390 mm) |
| Max Reach Along Ground | 26.81 ft in (8170 mm) |
| Max Vertical Wall Digging Depth | 16.25 ft in (4950 mm) |
| Max Digging Depth | 18.18 ft in (5540 mm) |
| Boom/Stick Option (Hex) 1 | Boom 15'2" (4630mm) / Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 25.07 ft in (7640 mm) |
| Max Cutting Height | 29.7 ft in (9050 mm) |
| Shipping Height Of Unit | 9.45 ft in (2880 mm) |
| Max Loading Height | 21.92 ft in (6680 mm) |
| Max Reach Along Ground | 28.35 ft in (8640 mm) |
| Max Vertical Wall Digging Depth | 17.56 ft in (5350 mm) |
| Max Digging Depth | 19.85 ft in (6050 mm) |
| Boom/Stick Option (Hex) 2 | Boom 15'2" (4630mm) / Stick 9'10" (3010mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.45 ft in (2880 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 9.16 ft in (2790 mm) |
| Tail Swing Radius | 6.99 ft in (2130 mm) |
| Removal Counterweight Clearance | 2.94 ft in (895 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 4.93 psi (34 kPa) |
| Number Of Shoes Per Side | 43 |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 3.5 mph (5.64 km/h) |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AJ-4JJ1X |
| Net Power | 95 hp (70.9 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 265 lb ft (359.3 Nm) |
| Displacement | 183.1 cu in (3 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 28440 lb (12900.2 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Cooling System Fluid Capacity | 3.9 gal (14.6 L) |
| Hydraulic System Fluid Capacity | 41.5 gal (157 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Swing Drive Fluid Capacity | 0.6 gal (2.2 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 68.2 gal/min (258.2 L/min) |
Swing Mechanism
| Swing Speed | 14 rpm |
| Swing Torque | 24340 lb ft (33000.7 Nm) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
