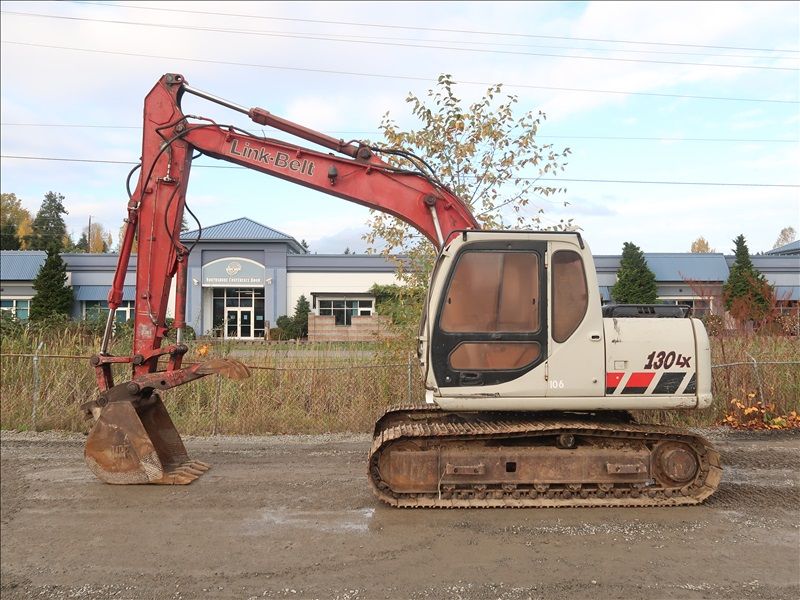

Link-Belt 130LX
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 24.58 ft in (7490 mm) |
| Shipping Height Of Unit | 8.99 ft in (2740 mm) |
| Max Cutting Height | 30.06 ft in (9160 mm) |
| Max Loading Height | 22.22 ft in (6770 mm) |
| Max Reach Along Ground | 26.68 ft in (8130 mm) |
| Max Vertical Wall Digging Depth | 16.28 ft in (4960 mm) |
| Max Digging Depth | 18.18 ft in (5540 mm) |
| Boom/Stick Option (Hex) 1 | Boom 15'2" (4630mm) / Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 24.74 ft in (7540 mm) |
| Max Cutting Height | 31.01 ft in (9450 mm) |
| Shipping Height Of Unit | 9.13 ft in (2780 mm) |
| Max Loading Height | 23.17 ft in (7060 mm) |
| Max Reach Along Ground | 28.25 ft in (8610 mm) |
| Max Vertical Wall Digging Depth | 17.52 ft in (5340 mm) |
| Max Digging Depth | 20.02 ft in (6100 mm) |
| Boom/Stick Option (Hex) 2 | Boom 15'2" (4630mm) / Stick 10'0" (3060mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 8.99 ft in (2740 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 9.16 ft in (2790 mm) |
| Tail Swing Radius | 6.7 ft in (2040 mm) |
| Removal Counterweight Clearance | 2.94 ft in (895 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 4.79 psi (33.03 kPa) |
| Number Of Shoes Per Side | 43 |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | BB-4BG1T |
| Net Power | 89 hp (66.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 239 lb ft (324.1 Nm) |
| Displacement | 264 cu in (4.4 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 27100 lb (12292.4 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 4.7 gal (17.7 L) |
| Hydraulic System Fluid Capacity | 32.5 gal (123 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4 gal (15 L) |
| Swing Drive Fluid Capacity | 0.6 gal (2.2 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 64.8 gal/min (245.3 L/min) |
Swing Mechanism
| Swing Speed | 13.4 rpm |
| Swing Torque | 24340 lb ft (33000.7 Nm) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
