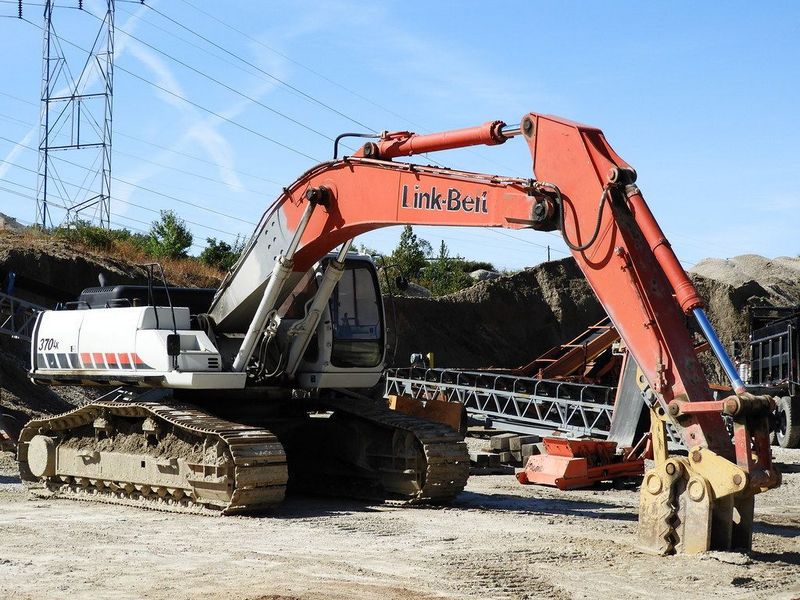

Link-Belt 370LX Road Builder
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.26 ft in (11052 mm) |
| Shipping Height Of Unit | 11.41 ft in (3477 mm) |
| Max Cutting Height | 35.08 ft in (10690 mm) |
| Max Loading Height | 24.74 ft in (7540 mm) |
| Max Reach Along Ground | 35.83 ft in (10920 mm) |
| Max Vertical Wall Digging Depth | 20.94 ft in (6380 mm) |
| Max Digging Depth | 23.1 ft in (7040 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'2" (6450mm) / Stick 10'8" (3250mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.26 ft in (11052 mm) |
| Max Cutting Height | 39.7 ft in (12100 mm) |
| Shipping Height Of Unit | 11.41 ft in (3477 mm) |
| Max Loading Height | 28.88 ft in (8800 mm) |
| Max Reach Along Ground | 35.83 ft in (10920 mm) |
| Max Vertical Wall Digging Depth | 16.61 ft in (5060 mm) |
| Max Digging Depth | 19.56 ft in (5960 mm) |
| Boom/Stick Option (Hex) 2 | High Lift Boom 21'2" (6450mm) / Stick 10'8" (3250mm) |
Dimensions
| Ground Clearance | 2.39 ft in (726 mm) |
| Height To Top Of Cab | 11.41 ft in (3477 mm) |
| Width To Outside Of Tracks | 11.95 ft in (3640 mm) |
| Length Of Track On Ground | 14.34 ft in (4370 mm) |
| Tail Swing Radius | 11.46 ft in (3490 mm) |
| Removal Counterweight Clearance | 4.95 ft in (1506 mm) |
Undercarriage
| Track Gauge | 9.65 ft in (2940 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Ground Pressure | 9.52 psi (65.64 kPa) |
| Number Of Shoes Per Side | 50 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 2.6 mph (4.19 km/h) |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AA-6HK1XQB |
| Net Power | 247 hp (184.2 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 687 lb ft (931.5 Nm) |
| Displacement | 475 cu in (7.8 L) |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 97891 lb (44402.7 kg) |
| Fuel Capacity | 153.3 gal (580 L) |
| Cooling System Fluid Capacity | 11.1 gal (42 L) |
| Hydraulic System Fluid Capacity | 92.5 gal (350 L) |
| Engine Oil Capacity | 8.8 gal (33 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3 gal (11 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 150 gal/min (567.9 L/min) |
Swing Mechanism
| Swing Speed | 8.1 rpm |
| Swing Torque | 112110 lb ft (152000.8 Nm) |
