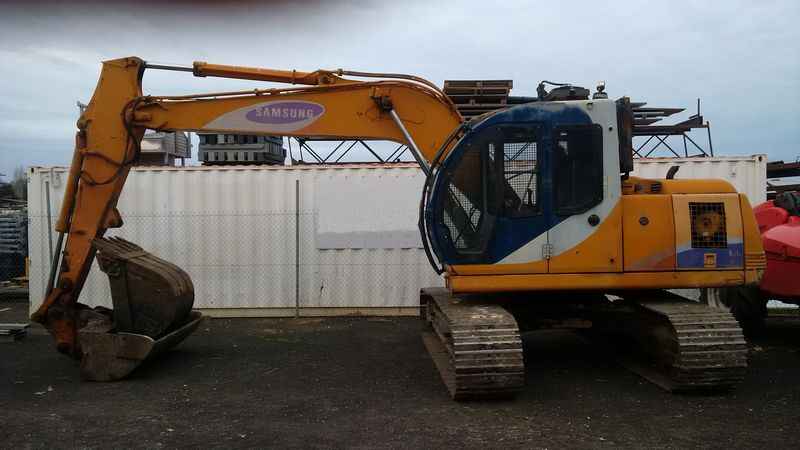

Samsung SE130LCM-2
Browse All Samsung or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 25.53 ft in (7780 mm) |
| Shipping Height Of Unit | 9.91 ft in (3020 mm) |
| Max Cutting Height | 29.27 ft in (8920 mm) |
| Max Loading Height | 21.17 ft in (6450 mm) |
| Max Reach Along Ground | 29.2 ft in (8900 mm) |
| Max Digging Depth | 19.53 ft in (5950 mm) |
| Boom/Stick Option (Hex) 1 | Boom 15'1" (4600mm) w/ Stick 9'10" (3000mm) |
Dimensions
| Ground Clearance | 2.14 ft in (650 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Width To Outside Of Tracks | 9.85 ft in (3000 mm) |
| Length Of Track On Ground | 9.91 ft in (3020 mm) |
| Tail Swing Radius | 7.3 ft in (2225 mm) |
| Removal Counterweight Clearance | 3.65 ft in (1110 mm) |
Undercarriage
| Track Gauge | 6.57 ft in (2000 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
| Ground Pressure | 4.7 psi (32.34 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | 4BTA3.9-C |
| Gross Power | 99 hp (73.9 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 259 lb ft (351.2 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 30600.2 lb (13880 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Hydraulic System Relief Valve Pressure | 4552 psi (31385 kPa) |
| Hydraulic Pump Flow Capacity | 68.7 gal/min (260 L/min) |
Swing Mechanism
| Swing Speed | 12.7 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 0.9 yd3 (0.7 m3) |
