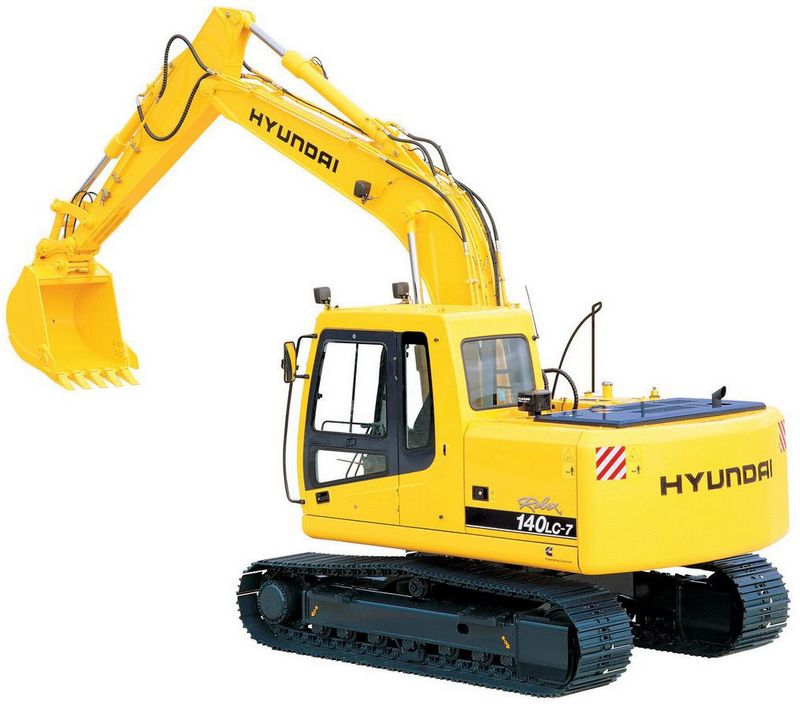

Hyundai R140LC-7
Browse All Hyundai or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 25.63 ft in (7810 mm) |
| Shipping Height Of Unit | 8.67 ft in (2640 mm) |
| Max Cutting Height | 26.45 ft in (8060 mm) |
| Max Loading Height | 18.48 ft in (5630 mm) |
| Max Reach Along Ground | 24.94 ft in (7600 mm) |
| Max Vertical Wall Digging Depth | 14.64 ft in (4460 mm) |
| Max Digging Depth | 16.41 ft in (5000 mm) |
| Boom/Stick Option (Hex) 1 | 15'1 (4600mm) Boom / 6'3 (1900mm) Stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 25.69 ft in (7830 mm) |
| Max Cutting Height | 26.71 ft in (8140 mm) |
| Shipping Height Of Unit | 9.03 ft in (2750 mm) |
| Max Loading Height | 18.74 ft in (5710 mm) |
| Max Reach Along Ground | 25.53 ft in (7780 mm) |
| Max Vertical Wall Digging Depth | 15.06 ft in (4590 mm) |
| Max Digging Depth | 17.07 ft in (5200 mm) |
| Boom/Stick Option (Hex) 2 | 15'1 (4600mm) Boom / 6'11 (2100mm) Stick |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 25.6 ft in (7800 mm) |
| Max Cutting Height | 27.96 ft in (8520 mm) |
| Max Loading Height | 19.95 ft in (6080 mm) |
| Shipping Height Of Unit | 9.06 ft in (2760 mm) |
| Max Reach Along Ground | 26.91 ft in (8200 mm) |
| Max Vertical Wall Digging Depth | 16.8 ft in (5120 mm) |
| Max Digging Depth | 18.38 ft in (5600 mm) |
| Boom/Stick Option (Hex) 3 | 15'1 (4600mm) Boom / 8'2 (2500mm) Stick |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 25.4 ft in (7740 mm) |
| Shipping Height Of Unit | 10.08 ft in (3070 mm) |
| Max Cutting Height | 28.65 ft in (8730 mm) |
| Max Loading Height | 20.61 ft in (6280 mm) |
| Max Reach Along Ground | 28.45 ft in (8670 mm) |
| Max Digging Depth | 20.02 ft in (6100 mm) |
| Boom/Stick Option (Hex) 4 | 15'1 (4600mm) Boom / 9'10 (3000mm) Stick |
| Max Vertical Wall Dig Depth | 18.57 ft in (5660 mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 23.99 ft in (7310 mm) |
| Shipping Height Of Unit | 8.8 ft in (2680 mm) |
| Max Cutting Height | 25.14 ft in (7660 mm) |
| Max Loading Height | 17.13 ft in (5220 mm) |
| Max Reach Along Ground | 23.3 ft in (7100 mm) |
| Max Digging Depth | 15 ft in (4570 mm) |
| Boom/Stick Option (Hex) 5 | 13'5 (4100mm) Boom / 6'3 (1900mm) Stick |
| Max Vertical Wall Dig Depth | 13.42 ft in (4090 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 25.37 ft in (7730 mm) |
| Max Loading Height | 17.36 ft in (5290 mm) |
| Shipping Length Of Unit | 24.05 ft in (7330 mm) |
| Max Reach Along Ground | 23.86 ft in (7270 mm) |
| Shipping Height Of Unit | 9.26 ft in (2820 mm) |
| Max Digging Depth | 15.65 ft in (4770 mm) |
| Boom/Stick Option (Hex) 6 | 13'5 (4100mm) Boom / 6'11 (2100mm) Stick |
| Max Vertical Wall Dig Depth | 13.85 ft in (4220 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.26 ft in (2820 mm) |
| Width To Outside Of Tracks | 8.54 ft in (2600 mm) |
| Length Of Track On Ground | 9.85 ft in (3000 mm) |
| Tail Swing Radius | 7.58 ft in (2310 mm) |
| Removal Counterweight Clearance | 3.07 ft in (935 mm) |
Undercarriage
| Track Gauge | 6.57 ft in (2000 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 5.12 psi (35.31 kPa) |
| Max Travel Speed | 3.3 mph (5.32 km/h) |
| Drawbar Pull | 29320 lb (130.43 kN) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 46 |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B3.9-C |
| Gross Power | 115 hp (85.8 kw) |
| Net Power | 105 hp (78.3 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 330 lb ft (447.5 Nm) |
| Displacement | 238 cu in (4 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 30820.7 lb (13980 kg) |
| Fuel Capacity | 71.4 gal (270 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.1 gal (15.3 L) |
| Swing Drive Fluid Capacity | 0.7 gal (2.5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4690 psi (32336.4 kPa) |
| Hydraulic Pump Flow Capacity | 68.7 gal/min (260 L/min) |
Swing Mechanism
| Swing Speed | 13.6 rpm |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
