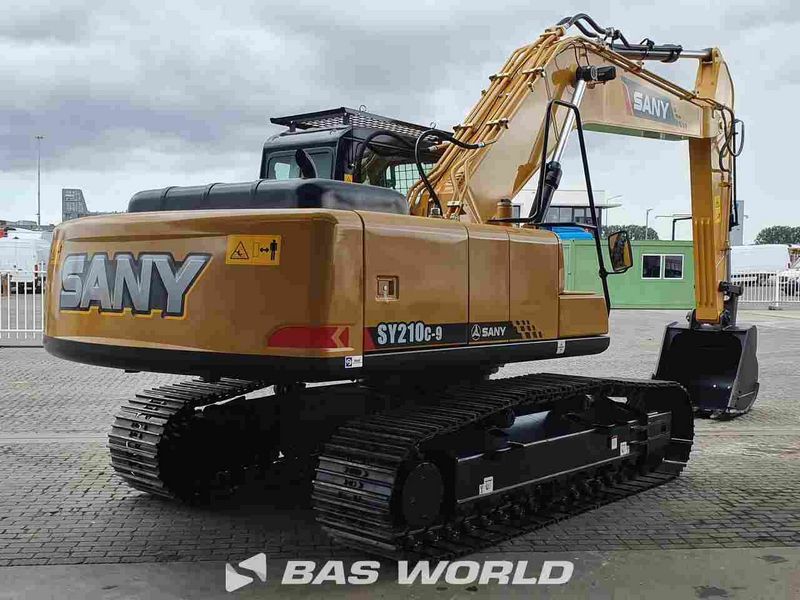

Sany SY210
Browse All Sany or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 30.84 ft in (9397 mm) |
| Shipping Height Of Unit | 9.7 ft in (2956 mm) |
| Max Loading Height | 21.25 ft in (6475 mm) |
| Max Reach Along Ground | 32.44 ft in (9885 mm) |
| Max Vertical Wall Digging Depth | 19.62 ft in (5980 mm) |
| Max Digging Depth | 21.76 ft in (6630 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Width To Outside Of Tracks | 9.78 ft in (2980 mm) |
| Length Of Track On Ground | 11.31 ft in (3445 mm) |
| Tail Swing Radius | 11.91 ft in (3630 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | 6BTAA5.9-C |
| Gross Power | 150.2 hp (112 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 360.1 cu in (5.9 L) |
Operational
| Operating Weight | 46076.7 lb (20900 kg) |
| Hydraulic Pump Flow Capacity | 111 gal/min (420 L/min) |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
