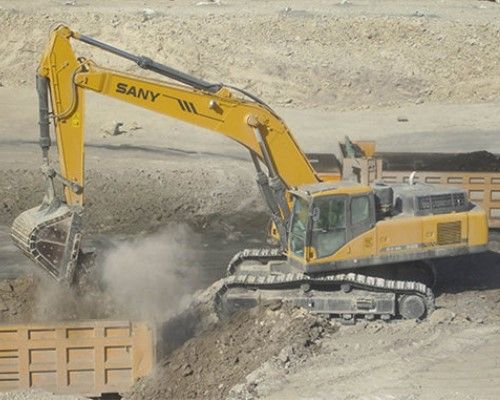

Sany SY420
Browse All Sany or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39.6 ft in (12070 mm) |
| Shipping Height Of Unit | 13.23 ft in (4030 mm) |
| Max Loading Height | 24.78 ft in (7550 mm) |
| Max Reach Along Ground | 39.38 ft in (12000 mm) |
| Max Vertical Wall Digging Depth | 22.61 ft in (6890 mm) |
| Max Digging Depth | 25.69 ft in (7830 mm) |
Dimensions
| Ground Clearance | 1.83 ft in (555 mm) |
| Width To Outside Of Tracks | 10.96 ft in (3340 mm) |
| Length Of Track On Ground | 13.19 ft in (4020 mm) |
| Tail Swing Radius | 15.85 ft in (4830 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.24 mph (5.2 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D24-TLU2G |
| Gross Power | 315.2 hp (235 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 729.3 cu in (12 L) |
Operational
| Operating Weight | 91712.3 lb (41600 kg) |
| Hydraulic Pump Flow Capacity | 190.3 gal/min (720 L/min) |
Buckets
| Reference Bucket Capacity | 2.7 yd3 (2 m3) |
