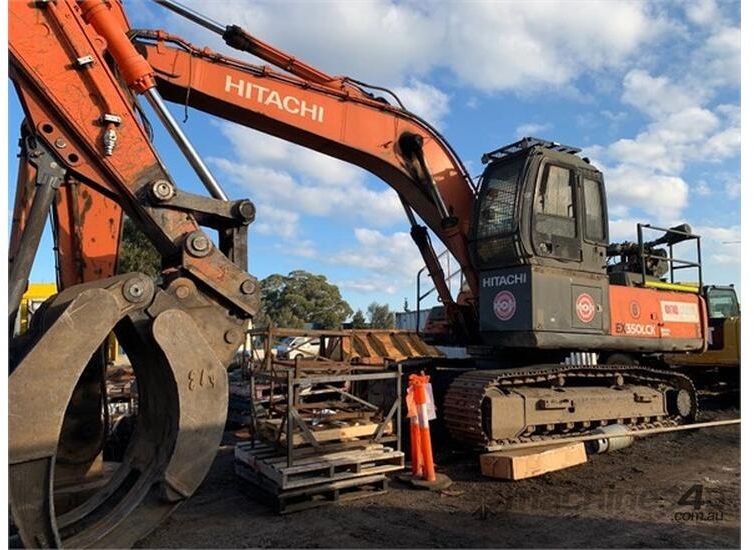

Tata Hitachi EX350 LCH
Browse All Tata Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 31.55 ft in (9614 mm) |
| Max Loading Height | 21.82 ft in (6650 mm) |
| Max Reach Along Ground | 32.98 ft in (10050 mm) |
| Max Vertical Wall Digging Depth | 15.61 ft in (4755 mm) |
| Max Digging Depth | 21.68 ft in (6606 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6400mm/Stick 2400mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 32.39 ft in (9870 mm) |
| Max Loading Height | 22.41 ft in (6830 mm) |
| Max Reach Along Ground | 33.99 ft in (10360 mm) |
| Max Vertical Wall Digging Depth | 18.44 ft in (5620 mm) |
| Max Digging Depth | 12.64 ft in (3850 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6400mm/Stick 2660mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 33.57 ft in (10230 mm) |
| Max Loading Height | 23.4 ft in (7130 mm) |
| Max Reach Along Ground | 35.77 ft in (10900 mm) |
| Max Vertical Wall Digging Depth | 21.26 ft in (6480 mm) |
| Max Digging Depth | 24.22 ft in (7380 mm) |
| Boom/Stick Option (Hex) 3 | Boom 6400mm/Stick 3200mm |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 13.29 ft in (4050 mm) |
| Tail Swing Radius | 10.83 ft in (3300 mm) |
| Removal Counterweight Clearance | 3.81 ft in (1160 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 9.1 psi (62.75 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | B-65D1T |
| Gross Power | 226.7 hp (169 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 600.5 cu in (9.9 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 74957.2 lb (34000 kg) |
| Fuel Capacity | 148 gal (560 L) |
| Cooling System Fluid Capacity | 10.4 gal (39 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 9.3 gal (35 L) |
| Swing Drive Fluid Capacity | 4.5 gal (17 L) |
| Hydraulic System Relief Valve Pressure | 4978.2 psi (34323.5 kPa) |
| Hydraulic Pump Flow Capacity | 137.4 gal/min (520 L/min) |
Swing Mechanism
| Swing Speed | 11.3 rpm |
Buckets
| Reference Bucket Capacity | 2 yd3 (1.5 m3) |
| Minimum Bucket Capacity | 1.8 yd3 (1.3 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
