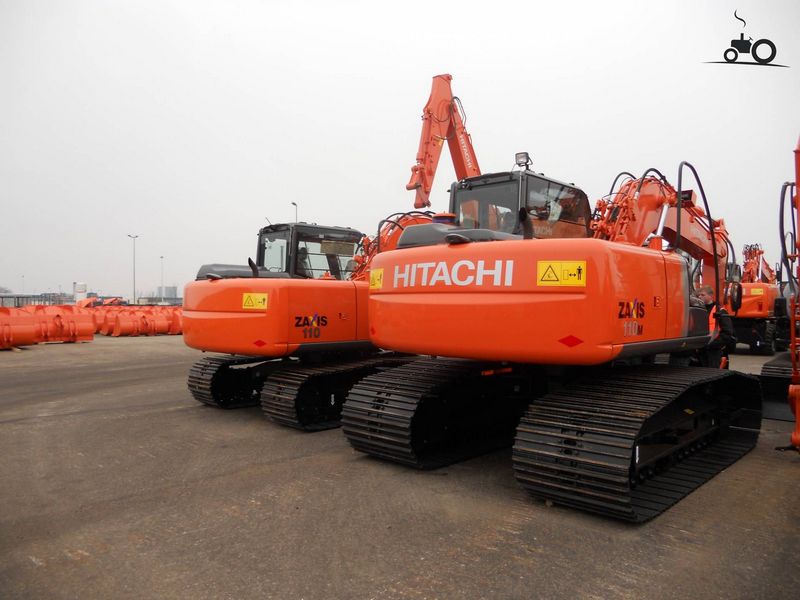

Tata Hitachi ZAXIS110
Browse All Tata Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 26.05 ft in (7940 mm) |
| Max Loading Height | 18.15 ft in (5530 mm) |
| Max Reach Along Ground | 23.92 ft in (7290 mm) |
| Max Vertical Wall Digging Depth | 14.18 ft in (4320 mm) |
| Max Digging Depth | 15.69 ft in (4780 mm) |
| Boom/Stick Option (Hex) 1 | Boom 14'0" (4270mm)/Stick 6'5" (1960mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 26.61 ft in (8110 mm) |
| Max Loading Height | 18.71 ft in (5700 mm) |
| Max Reach Along Ground | 24.84 ft in (7570 mm) |
| Max Vertical Wall Digging Depth | 15.16 ft in (4620 mm) |
| Max Digging Depth | 16.67 ft in (5080 mm) |
| Boom/Stick Option (Hex) 2 | Boom 14'0" (4270mm)/Stick 7'5" (2260mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 27.43 ft in (8360 mm) |
| Max Loading Height | 19.56 ft in (5960 mm) |
| Max Reach Along Ground | 26.45 ft in (8060 mm) |
| Max Vertical Wall Digging Depth | 16.87 ft in (5140 mm) |
| Max Digging Depth | 18.48 ft in (5630 mm) |
| Boom/Stick Option (Hex) 3 | Boom 14'0" (4270mm)/Stick 9'3" (2810mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 8.99 ft in (2740 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 8.6 ft in (2620 mm) |
| Tail Swing Radius | 6.99 ft in (2130 mm) |
| Removal Counterweight Clearance | 2.92 ft in (890 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Shoes Per Side | 41 |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 6 |
| Ground Pressure | 5.23 psi (36 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | BB-4BG1T |
| Net Power | 84.5 hp (63 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 250.8 lb ft (340 Nm) |
| Displacement | 264.2 cu in (4.4 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 23589.5 lb (10700 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.2 gal (15.8 L) |
| Swing Drive Fluid Capacity | 0.9 gal (3.2 L) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 52.9 gal/min (200 L/min) |
Swing Mechanism
| Swing Speed | 13.9 rpm |
Buckets
| Reference Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
