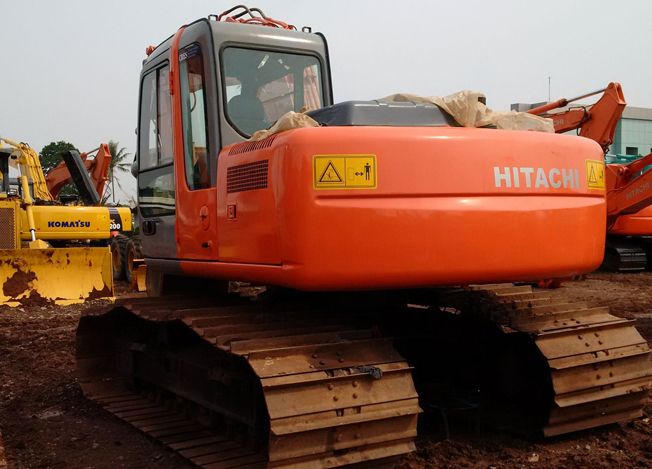

Tata Hitachi ZAXIS110M
Browse All Tata Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 26.71 ft in (8140 mm) |
| Max Loading Height | 18.8 ft in (5730 mm) |
| Max Reach Along Ground | 23.79 ft in (7250 mm) |
| Max Vertical Wall Digging Depth | 13.52 ft in (4120 mm) |
| Max Digging Depth | 15.03 ft in (4580 mm) |
| Boom/Stick Option (Hex) 1 | Boom 14'0" (4270mm)/Stick 6'5" (1960mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 27.3 ft in (8320 mm) |
| Max Loading Height | 19.39 ft in (5910 mm) |
| Max Reach Along Ground | 24.71 ft in (7530 mm) |
| Max Vertical Wall Digging Depth | 14.51 ft in (4420 mm) |
| Max Digging Depth | 16.02 ft in (4880 mm) |
| Boom/Stick Option (Hex) 2 | Boom 14'0" (4270mm)/Stick 7'5" (2260mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 28.12 ft in (8570 mm) |
| Max Loading Height | 20.25 ft in (6170 mm) |
| Max Reach Along Ground | 26.32 ft in (8020 mm) |
| Max Vertical Wall Digging Depth | 16.21 ft in (4940 mm) |
| Max Digging Depth | 17.82 ft in (5430 mm) |
| Boom/Stick Option (Hex) 3 | Boom 14'0" (4270mm)/Stick 9'35" (2810mm) |
Dimensions
| Ground Clearance | 1.96 ft in (595 mm) |
| Height To Top Of Cab | 9.68 ft in (2950 mm) |
| Width To Outside Of Tracks | 8.99 ft in (2740 mm) |
| Length Of Track On Ground | 9.81 ft in (2990 mm) |
| Tail Swing Radius | 6.99 ft in (2130 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
Undercarriage
| Track Gauge | 6.7 ft in (2040 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Max Travel Speed | 2.61 mph (4.2 km/h) |
| Number Of Shoes Per Side | 42 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 6 |
| Ground Pressure | 3.92 psi (27 kPa) |
Engine
| Engine Make | 2353 |
| Engine Model | BB-4BG1T |
| Net Power | 84.5 hp (63 kw) |
| Max Torque | 250.8 lb ft (340 Nm) |
| Displacement | 264.2 cu in (4.4 L) |
Operational
| Operating Weight | 28219.2 lb (12800 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.2 gal (15.8 L) |
| Swing Drive Fluid Capacity | 0.9 gal (3.2 L) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 52.9 gal/min (200 L/min) |
Swing Mechanism
| Swing Speed | 13.9 rpm |
Buckets
| Reference Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
