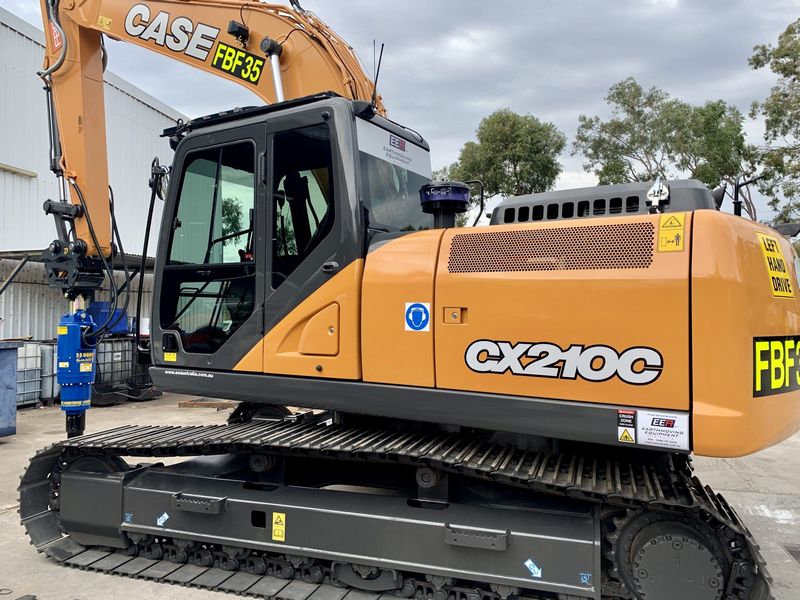

Case CX210C
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Digging Depth | 20.05 ft in (6110 mm) |
| Arm Digging Force | 27651.5 lb (123 kN) |
| Max Digging Height | 30.81 ft in (9390 mm) |
| Boom Length | 18.71 ft in (5.7 m) |
| Bucket Digging Force | 31922.87 lb (142 kN) |
| Boom/Stick Option (Hex) 1 | Arm - 2.40 m |
| Max.Dumping Height | 21.63 ft in (6590 mm) |
Boom/Stick Option (Hex) 2
| Max Digging Depth | 18.41 ft in (5610 mm) |
| Max. Digging Height | 29.99 ft in (9140 mm) |
| Boom/Stick Option (Hex) 2 | Arm - HD 1.90 m |
| Boom Length | 18.71 ft in (5.7 m) |
| Bucket Digging Force - Sae | 31922.87 lb (142 kN) |
| Arm Digging Force - Sae | 31922.87 lb (142 kN) |
| Max.Dumping Height | 20.77 ft in (6330 mm) |
Boom/Stick Option (Hex) 3
| Max Digging Depth | 21.82 ft in (6650 mm) |
| Bucket Digging Force | 31922.87 lb (142 kN) |
| Arm Digging Force - Sae | 23155.32 lb (103 kN) |
| Boom Length | 18.71 ft in (5.7 m) |
| Max.Dumping Height | 22.35 ft in (6810 mm) |
| Max. Digging Height | 31.53 ft in (9610 mm) |
| Boom/Stick Option (Hex) 3 | Arm - 2.94 m |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Track Gauge | 7.85 ft in (2390 mm) |
| Undercarriage Width | 9.81 ft in (2990 mm) |
| Wheelbase | 12.01 ft in (3660 mm) |
| Gradeability | 70 % |
| Cab Height | 120.87 in (3070 mm) |
| Track Height | 36.23 in (920 mm) |
| Overall Length | 372.45 in (9460 mm) |
Undercarriage
| Shoe Size | 19.69 in (500 mm) |
| Number Of Shoes Per Side | 49 |
| Drawbar Pull | 42264.08 lb (188 kN) |
| Ground Pressure | 6.97 psi (48 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.48 mph (5.6 km/h) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | ISUZU |
| Engine Model | AM-4HK1X |
| Gross Power | 159.6 hp (119 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 458.1 lb ft (621 Nm) |
| Displacement | 316.8 cu in (5.2 L) |
| Torque Measured @ | 1500 rpm |
| Bore | 4.6 in (115 mm) |
| Stroke | 5 in (125 mm) |
| Alternator | 50 amps |
Operational
| Operating Weight | 45768 lb (20760 kg) |
| Fuel Capacity | 108.4 gal (410 L) |
| Cooling System Fluid Capacity | 8.2 gal (30.8 L) |
| Hydraulic System Fluid Capacity | 63.5 gal (240 L) |
| Operating Voltage | 24 V |
Swing Mechanism
| Swing Speed | 11.5 rpm |
