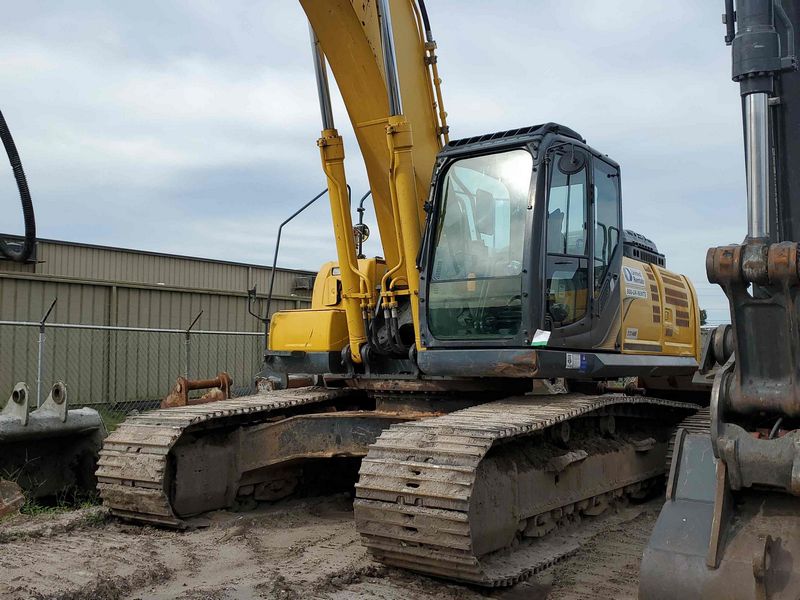

Kobelco SK350LC-9E ME
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 33.9 ft in (10332.72 mm) |
| Max Reach Along Ground | 33.3 ft in (10149.84 mm) |
| Max Vertical Wall Digging Depth | 14.2 ft in (4328.16 mm) |
| Max Digging Depth | 21.4 ft in (6522.72 mm) |
| Bucket Digging Force - Sae | 50559.53 lb (224.9 kN) |
| Horizontal Digging Stroke - Ground Level | 11.1 ft in (3383.28 mm) |
| Max Digging Reach | 33.11 ft in (10091.93 mm) |
| Max Dumping Clearance | 23.2 ft in (7071.36 mm) |
| Min Dumping Clearance | 12.3 ft in (3749.04 mm) |
| Arm Crowd Force-Iso | 51930.87 lb (231 kN) |
| Minimum Swing Radius | 176.38 in (4480 mm) |
| Arm Crowd Force - Sae | 50357.2 lb (224 kN) |
| Boom/Stick Option (Hex) 1 | Boom length 21.4 ft 11 in , arm length 6.50 m |
| Bucket Digging Force - Iso | 56044.87 lb (249.3 kN) |
Buckets
| Reference Bucket Capacity | 3.1 yd3 (2.3 m3) |
