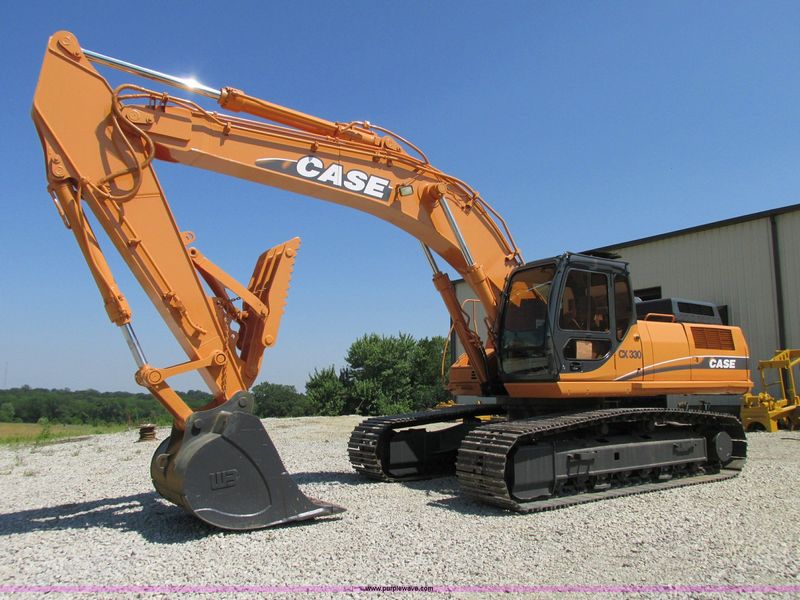

Case CX330
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.42 ft in (11090 mm) |
| Shipping Height Of Unit | 11.52 ft in (3510 mm) |
| Max Cutting Height | 35 ft in (10670 mm) |
| Max Loading Height | 24.75 ft in (7540 mm) |
| Max Reach Along Ground | 38.42 ft in (11720 mm) |
| Max Vertical Wall Digging Depth | 23.42 ft in (7150 mm) |
| Max Digging Depth | 26.67 ft in (8140 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'2" (6450mm)/ Stick 13'3" (4040 mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.25 ft in (11050 mm) |
| Max Cutting Height | 34 ft in (10370 mm) |
| Shipping Height Of Unit | 10.8 ft in (3290 mm) |
| Max Loading Height | 2375 ft in (7230 mm) |
| Max Reach Along Ground | 36 ft in (10980 mm) |
| Max Vertical Wall Digging Depth | 20.83 ft in (6350 mm) |
| Max Digging Depth | 24.08 ft in (7340 mm) |
| Boom/Stick Option (Hex) 2 | Boom 21'2" (6450mm)/ Stick 10'8" (3250 mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.5 ft in (11130 mm) |
| Max Cutting Height | 33.83 ft in (10320 mm) |
| Max Loading Height | 23.42 ft in (7140 mm) |
| Shipping Height Of Unit | 11.59 ft in (3530 mm) |
| Max Reach Along Ground | 34.33 ft in (10470 mm) |
| Max Vertical Wall Digging Depth | 19.58 ft in (5970 mm) |
| Max Digging Depth | 22.08 ft in (6730 mm) |
| Boom/Stick Option (Hex) 3 | Boom 21'2" (6450mm)/ Stick 8'8" (2630 mm) |
Dimensions
| Ground Clearance | 19 ft in (480 mm) |
| Height To Top Of Cab | 10.08 ft in (3070 mm) |
| Width To Outside Of Tracks | 11.17 ft in (3400 mm) |
| Length Of Track On Ground | 13.25 ft in (4040 mm) |
| Tail Swing Radius | 11.33 ft in (3450 mm) |
| Removal Counterweight Clearance | 48 ft in (1210 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Ground Pressure | 7.4 psi (51.03 kPa) |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Drawbar Pull | 60923 lb (271 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6HKIX, Tier III certified |
| Net Power | 248 hp (185 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 796 lb ft (1079.3 Nm) |
| Displacement | 475 cu in (7.8 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 78043 lb (35400 kg) |
| Fuel Capacity | 153 gal (580 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Hydraulic System Fluid Capacity | 92 gal (350 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 9.5 gal (36 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Flow Capacity | 150.1 gal/min (568 L/min) |
Swing Mechanism
| Swing Speed | 9.6 rpm |
Buckets
| Reference Bucket Capacity | 2.1 yd3 (1.6 m3) |
| Minimum Bucket Capacity | 1.3 yd3 (1 m3) |
| Maximum Bucket Capacity | 3 yd3 (2.3 m3) |
