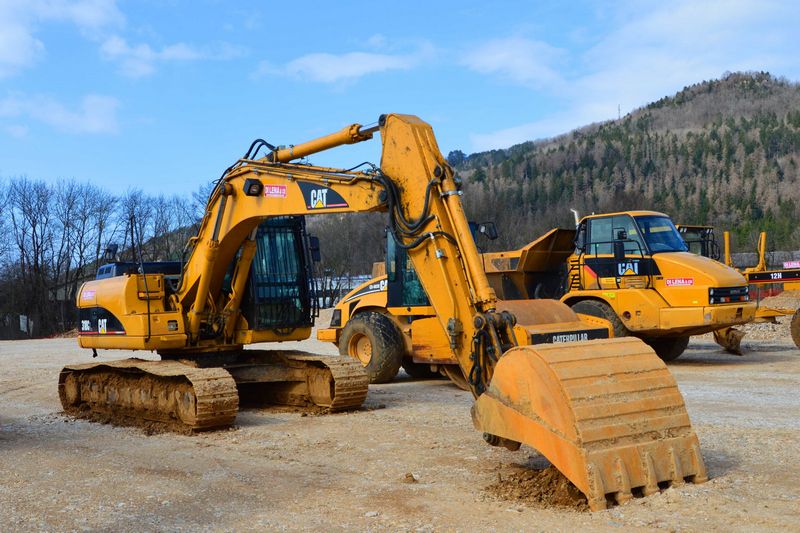

Caterpillar 318C L
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 29.08 ft in (8870 mm) |
| Shipping Height Of Unit | 10.08 ft in (3080 mm) |
| Max Cutting Height | 29.25 ft in (8920 mm) |
| Max Loading Height | 20.25 ft in (6160 mm) |
| Max Reach Along Ground | 28.42 ft in (8650 mm) |
| Max Vertical Wall Digging Depth | 15.83 ft in (4830 mm) |
| Max Digging Depth | 19.43 ft in (5920 mm) |
| Boom/Stick Option (Hex) 1 | Boom 5.3m (17' 5") 2250mm (7' 5" )Stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 28.92 ft in (8820 mm) |
| Max Cutting Height | 30.33 ft in (9240 mm) |
| Shipping Height Of Unit | 10.25 ft in (3120 mm) |
| Max Loading Height | 21.25 ft in (6460 mm) |
| Max Reach Along Ground | 29.92 ft in (9110 mm) |
| Max Vertical Wall Digging Depth | 17.68 ft in (5400 mm) |
| Max Digging Depth | 20.83 ft in (6370 mm) |
| Boom/Stick Option (Hex) 2 | Boom 5.3m (17' 5") 2700mm (8' 10")Stick |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 29 ft in (8830 mm) |
| Max Cutting Height | 31.67 ft in (9650 mm) |
| Max Loading Height | 22.5 ft in (6860 mm) |
| Shipping Height Of Unit | 11.5 ft in (3480 mm) |
| Max Reach Along Ground | 31.58 ft in (9630 mm) |
| Max Vertical Wall Digging Depth | 19.75 ft in (6010 mm) |
| Max Digging Depth | 22.5 ft in (6870 mm) |
| Boom/Stick Option (Hex) 3 | Boom 5.3m (17' 5") 3200mm (10' 6")Stick |
Dimensions
| Ground Clearance | 1.5 ft in (460 mm) |
| Height To Top Of Cab | 10.08 ft in (3080 mm) |
| Width To Outside Of Tracks | 9.17 ft in (2800 mm) |
| Length Of Track On Ground | 11.33 ft in (3450 mm) |
| Tail Swing Radius | 8.33 ft in (2540 mm) |
Undercarriage
| Track Gauge | 7.83 ft in (2200 mm) |
| Shoe Size | 24 in (600 mm) |
| Max Travel Speed | 3.3 mph (5.5 km/h) |
| Drawbar Pull | 45500 lb (202 kN) |
| Ground Pressure | 6.2 psi (43.1 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3066T |
| Net Power | 125 hp (93 kw) |
| Gross Power | 130 hp (97 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 389 cu in (6.4 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 43320 lb (19650 kg) |
| Fuel Capacity | 85 gal (320 L) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 67.4 gal (255 L) |
| Engine Oil Capacity | 7.9 gal (30 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.1 gal (8 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34320 kPa) |
| Hydraulic Pump Flow Capacity | 50.2 gal/min (190 L/min) |
Swing Mechanism
| Swing Torque | 36875 lb ft (50000 Nm) |
| Swing Speed | 10.8 rpm |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.4 yd3 (1.1 m3) |
