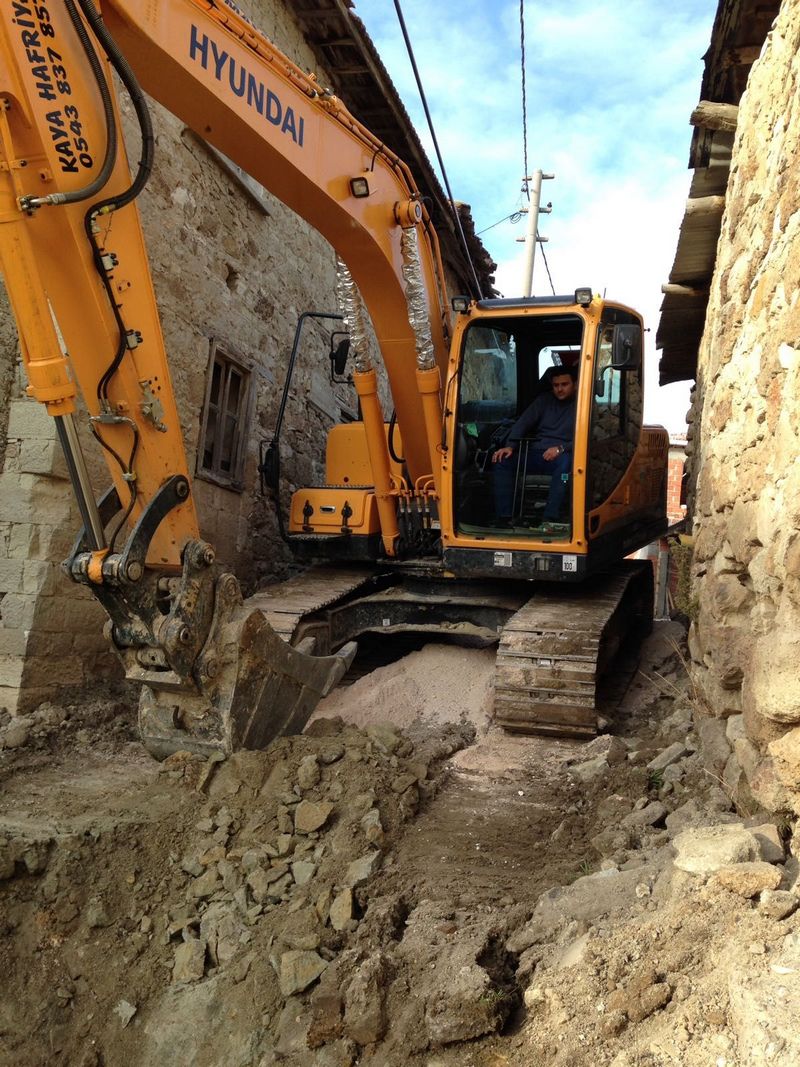

Hyundai R140LCM-7A
Browse All Hyundai or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 25.46 ft in (7760 mm) |
| Shipping Height Of Unit | 8.99 ft in (2740 mm) |
| Max Cutting Height | 27.37 ft in (8340 mm) |
| Max Loading Height | 19.36 ft in (5900 mm) |
| Max Reach Along Ground | 24.74 ft in (7540 mm) |
| Max Vertical Wall Digging Depth | 13.72 ft in (4180 mm) |
| Max Digging Depth | 15.42 ft in (4700 mm) |
| Boom/Stick Option (Hex) 1 | 15'1 (4600mm) Boom / 6'3 (1900mm) Stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 25.63 ft in (7810 mm) |
| Max Cutting Height | 26.71 ft in (8140 mm) |
| Shipping Height Of Unit | 9.36 ft in (2850 mm) |
| Max Loading Height | 19.62 ft in (5980 mm) |
| Max Reach Along Ground | 25.33 ft in (7720 mm) |
| Max Vertical Wall Digging Depth | 14.15 ft in (4310 mm) |
| Max Digging Depth | 16.08 ft in (4900 mm) |
| Boom/Stick Option (Hex) 2 | 15'1 (4600mm) Boom / 6'11 (2100mm) Stick |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 25.5 ft in (7770 mm) |
| Max Cutting Height | 28.68 ft in (8740 mm) |
| Max Loading Height | 20.67 ft in (6300 mm) |
| Shipping Height Of Unit | 9.22 ft in (2810 mm) |
| Max Reach Along Ground | 26.68 ft in (8130 mm) |
| Max Vertical Wall Digging Depth | 15.88 ft in (4840 mm) |
| Max Digging Depth | 17.39 ft in (5300 mm) |
| Boom/Stick Option (Hex) 3 | 15'1 (4600mm) Boom / 8'2 (2500mm) Stick |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 25.63 ft in (7810 mm) |
| Shipping Height Of Unit | 10.11 ft in (3080 mm) |
| Max Cutting Height | 29.57 ft in (9010 mm) |
| Max Loading Height | 21.53 ft in (6560 mm) |
| Max Reach Along Ground | 28.22 ft in (8600 mm) |
| Max Digging Depth | 19.03 ft in (5800 mm) |
| Boom/Stick Option (Hex) 4 | 15'1 (4600mm) Boom / 9'10 (3000mm) Stick |
| Max Vertical Wall Dig Depth | 17.66 ft in (5380 mm) |
Dimensions
| Ground Clearance | 1.97 ft in (600 mm) |
| Height To Top Of Cab | 10.11 ft in (3080 mm) |
| Width To Outside Of Tracks | 9.32 ft in (2840 mm) |
| Length Of Track On Ground | 9.95 ft in (3030 mm) |
| Tail Swing Radius | 7.58 ft in (2310 mm) |
| Removal Counterweight Clearance | 3.93 ft in (1195 mm) |
Undercarriage
| Track Gauge | 6.7 ft in (2040 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
| Ground Pressure | 4.55 psi (0.22 kPa) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 47 |
| Drawbar Pull | 13300 lb (59.17 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | D04FD-TAA |
| Gross Power | 119 hp (88.8 kw) |
| Net Power | 105 hp (78.3 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 328.4 lb ft (445.3 Nm) |
| Displacement | 4249 cu in (69.7 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1700 rpm |
Operational
| Operating Weight | 37214.1 lb (16880 kg) |
| Fuel Capacity | 71.4 gal (270 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.9 gal (18.5 L) |
| Swing Drive Fluid Capacity | 0.7 gal (2.5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4690 psi (224.6 kPa) |
| Hydraulic Pump Flow Capacity | 68.7 gal/min (260 L/min) |
Swing Mechanism
| Swing Speed | 13.1 rpm |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
