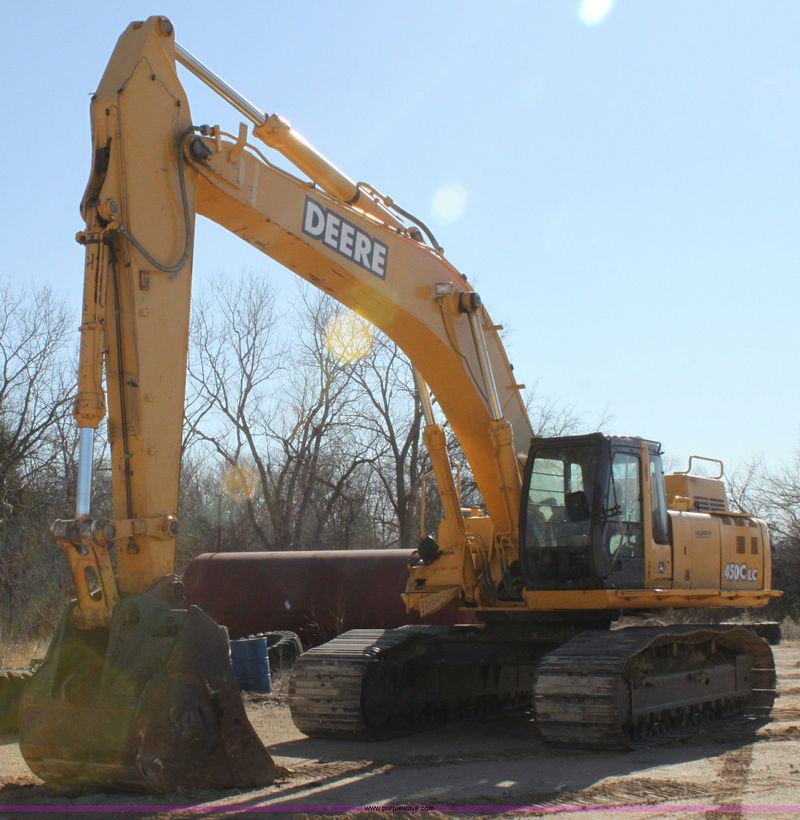

John Deere 450C LC
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39.08 ft in (11910 mm) |
| Shipping Height Of Unit | 11.82 ft in (3600 mm) |
| Max Cutting Height | 33.67 ft in (10262.62 mm) |
| Max Loading Height | 23.08 ft in (7034.79 mm) |
| Max Reach Along Ground | 36.58 ft in (11149.59 mm) |
| Max Vertical Wall Digging Depth | 17.5 ft in (5334 mm) |
| Max Digging Depth | 23.83 ft in (7263.39 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 9ft. 6in. (2.9m ) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 39.11 ft in (11920 mm) |
| Max Cutting Height | 36.33 ft in (11073.39 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Loading Height | 25.17 ft in (7671.82 mm) |
| Max Reach Along Ground | 38.75 ft in (11811 mm) |
| Max Vertical Wall Digging Depth | 21.83 ft in (6653.79 mm) |
| Max Digging Depth | 25.42 ft in (7748.02 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 11ft. 2in. (3.4m ) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 39.11 ft in (11920 mm) |
| Max Cutting Height | 36.67 ft in (11177.02 mm) |
| Max Loading Height | 25.5 ft in (7772.4 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Reach Along Ground | 40.25 ft in (12268.2 mm) |
| Max Vertical Wall Digging Depth | 23.08 ft in (7034.79 mm) |
| Max Digging Depth | 27.08 ft in (8253.99 mm) |
| Boom/Stick Option (Hex) 3 | Arm Length 12ft. 10in.(3.9m) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 38.49 ft in (11730 mm) |
| Shipping Height Of Unit | 15.29 ft in (4660 mm) |
| Max Cutting Height | 38.92 ft in (11862.82 mm) |
| Max Loading Height | 28.75 ft in (8763 mm) |
| Max Reach Along Ground | 43.25 ft in (13182.6 mm) |
| Max Digging Depth | 29.92 ft in (9119.62 mm) |
| Max Vertical Wall Dig Depth | 27.75 ft in (8458.21 mm) |
| Boom/Stick Option (Hex) 4 | Arm Length 16ft. 1in. (4.9m ) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 34.16 ft in (10410 mm) |
| Shipping Height Of Unit | 12.28 ft in (3740 mm) |
| Max Cutting Height | 35.75 ft in (10896.6 mm) |
| Max Loading Height | 24.08 ft in (7339.59 mm) |
| Max Reach Along Ground | 34.75 ft in (10591.8 mm) |
| Max Digging Depth | 20.43 ft in (6224.02 mm) |
| Max Vertical Wall Dig Depth | 16.75 ft in (5105.4 mm) |
| Boom/Stick Option (Hex) 5 | ME Arm Length 9ft 6in. (2.9m ) |
Dimensions
| Ground Clearance | 2.42 ft in (735 mm) |
| Height To Top Of Cab | 10.77 ft in (3280 mm) |
| Width To Outside Of Tracks | 11.95 ft in (3640 mm) |
| Length Of Track On Ground | 14.67 ft in (4470 mm) |
| Tail Swing Radius | 11.42 ft in (3480 mm) |
| Removal Counterweight Clearance | 4.43 ft in (1350 mm) |
Undercarriage
| Track Gauge | 9.49 ft in (2890 mm) |
| Shoe Size | 30 in (750 mm) |
| Ground Pressure | 9.12 psi (62.89 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Drawbar Pull | 79590 lb (354.04 kN) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 53 |
| Number Of Carrier Rollers Per Side | 3 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6125H |
| Net Power | 316 hp (235.7 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 955 lb ft (1294.9 Nm) |
| Displacement | 763 cu in (12.6 L) |
| Aspiration | Turbocharger |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 102560 lb (46520.5 kg) |
| Fuel Capacity | 171 gal (647.4 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Hydraulic System Fluid Capacity | 74 gal (280.2 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 11.1 gal (42 L) |
| Swing Drive Fluid Capacity | 1.8 gal (6.5 L) |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4410 psi (30405.9 kPa) |
| Hydraulic Pump Flow Capacity | 100 gal/min (378.6 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 107004 lb ft (145078 Nm) |
Buckets
| Reference Bucket Capacity | 3.1 yd3 (2.4 m3) |
| Minimum Bucket Capacity | 2.1 yd3 (1.6 m3) |
| Maximum Bucket Capacity | 6.6 yd3 (5 m3) |
