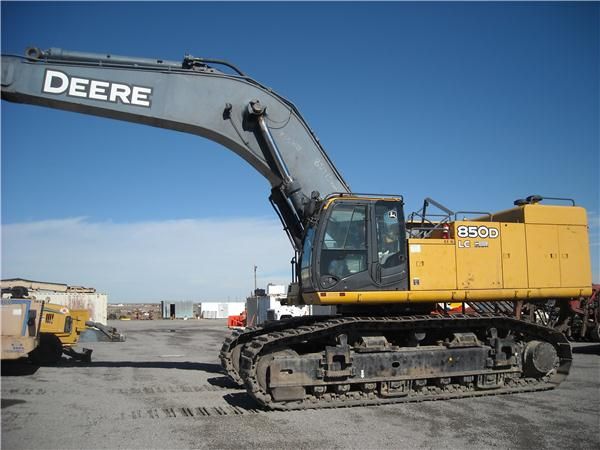

John Deere 850D LC
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 48.5 ft in (14780 mm) |
| Shipping Height Of Unit | 15 ft in (4570 mm) |
| Max Cutting Height | 42.75 ft in (13030 mm) |
| Max Loading Height | 29.75 ft in (9080 mm) |
| Max Reach Along Ground | 45.33 ft in (13820 mm) |
| Max Vertical Wall Digging Depth | 23.5 ft in (7170 mm) |
| Max Digging Depth | 29.08 ft in (8870 mm) |
| Boom/Stick Option (Hex) 1 | Boom 27' 7" (8.4 m) / Stick - 12' 2" (3.7 m ) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 48.67 ft in (14830 mm) |
| Max Cutting Height | 45.33 ft in (13820 mm) |
| Shipping Height Of Unit | 15.75 ft in (4810 mm) |
| Max Loading Height | 31.92 ft in (9730 mm) |
| Max Reach Along Ground | 48 ft in (14640 mm) |
| Max Vertical Wall Digging Depth | 27.83 ft in (8480 mm) |
| Max Digging Depth | 31.42 ft in (9570 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 27' 7" (8.4 m) / Stick - 14' 5" (4.4 m) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 47.92 ft in (14610 mm) |
| Max Cutting Height | 47.67 ft in (14530 mm) |
| Max Loading Height | 34.17 ft in (10410 mm) |
| Shipping Height Of Unit | 18.5 ft in (5640 mm) |
| Max Reach Along Ground | 51.42 ft in (15670 mm) |
| Max Vertical Wall Digging Depth | 32 ft in (9750 mm) |
| Max Digging Depth | 34.67 ft in (10570 mm) |
| Boom/Stick Option (Hex) 3 | Boom - 27' 7" (8.4 m) / Stick - 17' 9" (5.4 m) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 44.33 ft in (13510 mm) |
| Shipping Height Of Unit | 17.08 ft in (5210 mm) |
| Max Cutting Height | 39.42 ft in (12010 mm) |
| Max Loading Height | 26.67 ft in (8130 mm) |
| Max Reach Along Ground | 39.42 ft in (12020 mm) |
| Max Digging Depth | 23.42 ft in (7140 mm) |
| Max Vertical Wall Dig Depth | 13.42 ft in (4100 mm) |
| Boom/Stick Option (Hex) 4 | Mass Boom - 23' 4" (7.1 m) / Mass Stick - 9' 8" (2.95 m) |
Boom/Stick Option (Hex) 5
| Max Cutting Height | 48.1 ft in (14660 mm) |
| Max Loading Height | 35.47 ft in (10810 mm) |
| Max Reach Along Ground | 53.55 ft in (16320 mm) |
| Max Digging Depth | 36.62 ft in (11160 mm) |
| Boom/Stick Option (Hex) 5 | Mass Boom - 23' 4" (7.1 m) / Mass Stick - 14' 5" (4.4 m) |
| Max Vertical Wall Dig Depth | 32.39 ft in (9870 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 50.33 ft in (15340 mm) |
| Max Loading Height | 36.95 ft in (11260 mm) |
| Max Reach Along Ground | 56.89 ft in (17340 mm) |
| Max Digging Depth | 39.9 ft in (12160 mm) |
| Boom/Stick Option (Hex) 6 | Mass Boom - 23' 4" (7.1 m) / Mass Stick - 17' 9" (5.4 m) |
| Max Vertical Wall Dig Depth | 37.21 ft in (11340 mm) |
Dimensions
| Ground Clearance | 2.92 ft in (889 mm) |
| Height To Top Of Cab | 11.92 ft in (3630 mm) |
| Width To Outside Of Tracks | 14.25 ft in (4340 mm) |
| Length Of Track On Ground | 16.75 ft in (5110 mm) |
| Tail Swing Radius | 14.83 ft in (4520 mm) |
| Removal Counterweight Clearance | 5.5 ft in (1680 mm) |
Undercarriage
| Track Gauge | 11.33 ft in (3450 mm) |
| Shoe Size | 36 in (900 mm) |
| Drawbar Pull | 126193 lb (561.34 kN) |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 11.8 psi (81.41 kPa) |
| Number Of Shoes Per Side | 51 |
| Max Travel Speed | 2.5 mph (4.1 km/h) |
| Number Of Carrier Rollers Per Side | 3 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6WG1XYSA-03 |
| Net Power | 532 hp (397 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 957 cu in (15.7 L) |
| Aspiration | Turbocharged w/ cooler |
Operational
| Operating Weight | 185874 lb (84312 kg) |
| Fuel Capacity | 296 gal (1120 L) |
| Cooling System Fluid Capacity | 21.5 gal (81.4 L) |
| Hydraulic System Fluid Capacity | 208.7 gal (790 L) |
| Engine Oil Capacity | 13.9 gal (52.6 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.3 gal (12.3 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 139 gal/min (528 L/min) |
Swing Mechanism
| Swing Torque | 182362 lb ft (247250 Nm) |
| Swing Speed | 7.3 rpm |
Buckets
| Reference Bucket Capacity | 4.6 yd3 (3.5 m3) |
| Minimum Bucket Capacity | 2.8 yd3 (2.1 m3) |
| Maximum Bucket Capacity | 6.5 yd3 (5 m3) |
