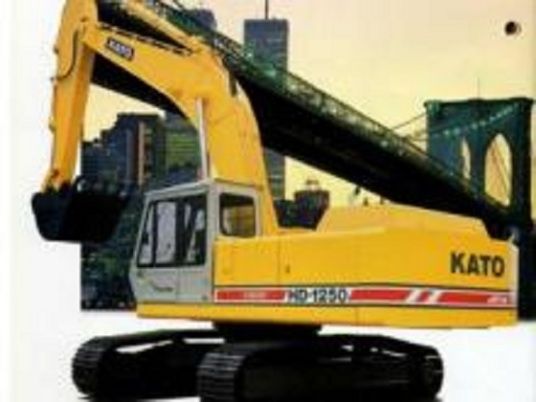

Kato HD1250VII
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 33.31 ft in (10150 mm) |
| Max Loading Height | 23.33 ft in (7110 mm) |
| Max Reach Along Ground | 34.09 ft in (10390 mm) |
| Max Vertical Wall Digging Depth | 18.54 ft in (5650 mm) |
| Max Digging Depth | 22.02 ft in (6710 mm) |
| Boom/Stick Option (Hex) 1 | Short arm 2460mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.59 ft in (11150 mm) |
| Max Cutting Height | 33.9 ft in (10330 mm) |
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Max Loading Height | 23.92 ft in (7290 mm) |
| Max Reach Along Ground | 36.06 ft in (10990 mm) |
| Max Vertical Wall Digging Depth | 21.49 ft in (6550 mm) |
| Max Digging Depth | 24.28 ft in (7400 mm) |
| Boom/Stick Option (Hex) 2 | Standard arm 3140mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 34.75 ft in (10590 mm) |
| Max Loading Height | 24.78 ft in (7550 mm) |
| Max Reach Along Ground | 38.95 ft in (11870 mm) |
| Max Vertical Wall Digging Depth | 24.81 ft in (7560 mm) |
| Max Digging Depth | 27.5 ft in (8380 mm) |
| Boom/Stick Option (Hex) 3 | Long arm 4130mm |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 9.88 ft in (3010 mm) |
| Width To Outside Of Tracks | 8.54 ft in (2600 mm) |
| Length Of Track On Ground | 12.18 ft in (3710 mm) |
| Tail Swing Radius | 11.36 ft in (3460 mm) |
| Removal Counterweight Clearance | 3.68 ft in (1120 mm) |
Undercarriage
| Track Gauge | 8.54 ft in (2600 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Drawbar Pull | 43400 lb (193.06 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 47 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 8.67 psi (59.78 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D22T |
| Gross Power | 217.3 hp (162 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 745 lb ft (1010.1 Nm) |
| Displacement | 680.4 cu in (11.2 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 65036.4 lb (29500 kg) |
| Fuel Capacity | 134.8 gal (510 L) |
| Cooling System Fluid Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 126.9 gal (480 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 7.7 gal (29 L) |
| Swing Drive Fluid Capacity | 3 gal (11 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4760 psi (32819.1 kPa) |
| Hydraulic Pump Flow Capacity | 153.8 gal/min (582 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 1.8 yd3 (1.4 m3) |
| Minimum Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
