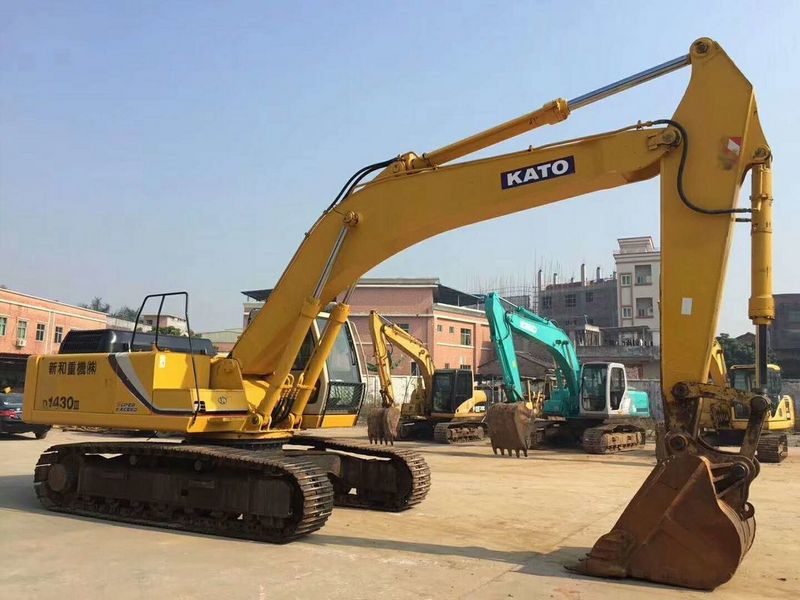

Kato HD1430
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.07 ft in (10994.14 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Cutting Height | 33.24 ft in (10130 mm) |
| Max Loading Height | 23.33 ft in (7110 mm) |
| Max Reach Along Ground | 34.09 ft in (10390 mm) |
| Max Vertical Wall Digging Depth | 18.71 ft in (5700 mm) |
| Max Digging Depth | 22.02 ft in (6710 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6480mm / Stick 2460mm (8' 0'') |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.07 ft in (10994.14 mm) |
| Max Cutting Height | 33.9 ft in (10330 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Loading Height | 23.92 ft in (7290 mm) |
| Max Reach Along Ground | 36.06 ft in (10990 mm) |
| Max Vertical Wall Digging Depth | 21.43 ft in (6530 mm) |
| Max Digging Depth | 24.28 ft in (7400 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6480mm / Stick 3140mm (10' 04'') |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.07 ft in (10994.14 mm) |
| Max Cutting Height | 35.54 ft in (10830 mm) |
| Max Loading Height | 25.46 ft in (7760 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Reach Along Ground | 39.24 ft in (11960 mm) |
| Max Vertical Wall Digging Depth | 25.1 ft in (7650 mm) |
| Max Digging Depth | 27.53 ft in (8390 mm) |
| Boom/Stick Option (Hex) 3 | Boom 6480mm / Stick 4140mm (13' 07'') |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 12.28 ft in (3740 mm) |
| Tail Swing Radius | 11.36 ft in (3460 mm) |
| Removal Counterweight Clearance | 3.71 ft in (1130 mm) |
Undercarriage
| Track Gauge | 8.54 ft in (2600 mm) |
| Shoe Size | 24 in (609.6 mm) |
| Ground Pressure | 8.82 psi (60.82 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Number Of Shoes Per Side | 48 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D24-TE1 |
| Net Power | 232 hp (173.1 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 745 lb ft (1010.1 Nm) |
| Displacement | 729 cu in (12 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 66579.6 lb (30200 kg) |
| Fuel Capacity | 148 gal (560 L) |
| Cooling System Fluid Capacity | 14.2 gal (53.5 L) |
| Hydraulic System Fluid Capacity | 128.2 gal (485 L) |
| Engine Oil Capacity | 13 gal (49 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3 gal (11.3 L) |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic System Relief Valve Pressure | 4760 psi (32819.1 kPa) |
| Hydraulic Pump Flow Capacity | 160 gal/min (605.7 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 1.9 yd3 (1.4 m3) |
