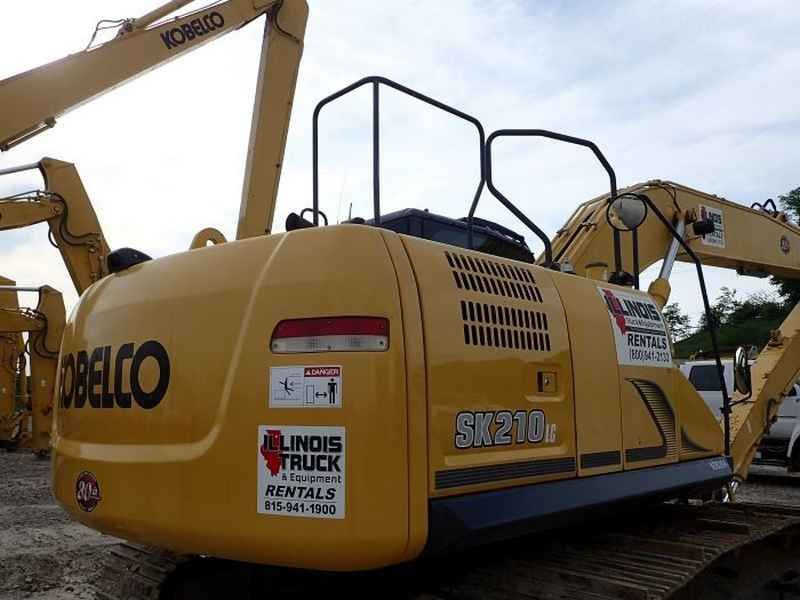

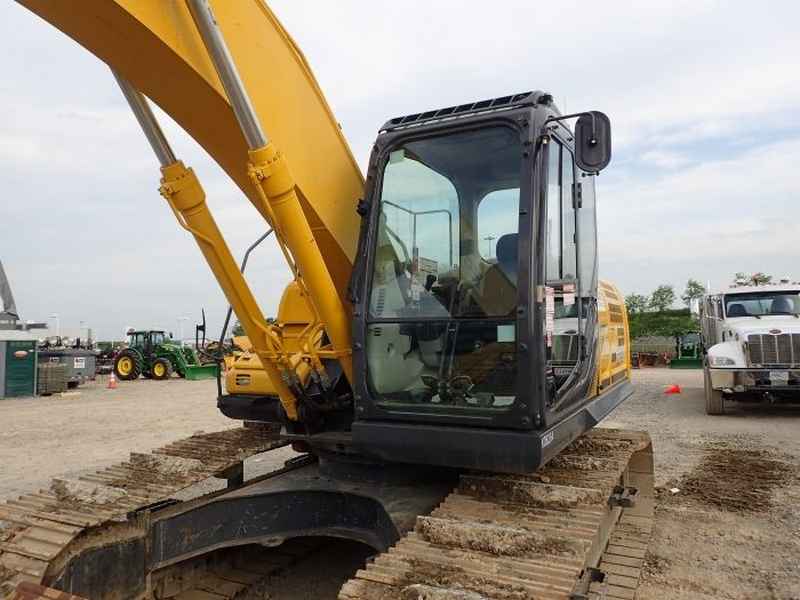

Kobelco SK210LC-10 LONG REACH
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Reach Along Ground | 51.7 ft in (15758.16 mm) |
| Max Vertical Wall Digging Depth | 36.8 ft in (11216.64 mm) |
| Max Digging Depth | 39.5 ft in (12039.6 mm) |
| Max Digging Reach | 51.11 ft in (15578.33 mm) |
| Max Dumping Clearance | 37.1 ft in (11308.08 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 28 ft 8 in / Arm - 20 ft 10 in |
| Horizontal Digging Stroke - Ground Level | 38.1 ft in (11612.88 mm) |
| Max Digging Height | 45.7 ft in (13929.36 mm) |
| Min Dumping Clearance | 6.1 ft in (1859.28 mm) |
| Minimum Swing Radius | 15.6 in (396.24 mm) |
Dimensions
| Shoe Width | 2.63 ft in (800 mm) |
| Overall Height | 10.24 ft in (3120 mm) |
| Overall Length | 41.64 ft in (12690 mm) |
| Overall Width | 3180 mm |
Undercarriage
| Ground Pressure | 5.4 psi (37.24 kPa) |
Engine
| Swing Speed | 12.7 rpm |
| Rated Engine Power Sae | 160 hp (119.4 kw) |
| Engine Model | SK210LC |
| Power Measured @ | 2000 rpm |
| Displacement | 312.6 cu in (5.2 L) |
| Engine | HINO J05E-UM |
Operational
| Operating Weight | 52249.6 lb (23700 kg) |
| Fuel Capacity | 84.5 gal (319.9 L) |
