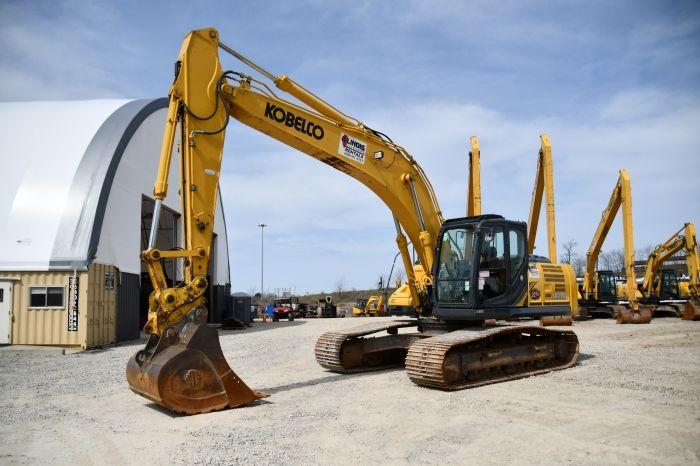

Kobelco SK260LC-9
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 31.8 ft in (9692.64 mm) |
| Max Vertical Wall Digging Depth | 19.11 ft in (5824.73 mm) |
| Max Digging Depth | 21.5 ft in (6553.2 mm) |
| Boom/Stick Option (Hex) 1 | Boom length 8 ft 2 in , arm length 2.5 m |
| Minimum Swing Radius | 12.1 in (307.34 mm) |
| Min Dumping Clearance | 9.11 ft in (2776.73 mm) |
| Max Digging Reach | 32.5 ft in (9906 mm) |
| Arm Crowd Force - Sae | 30798.83 lb (137 kN) |
| Horizontal Digging Stroke - Ground Level | 13.9 ft in (4236.72 mm) |
| Bucket Digging Force - Sae | 34170.96 lb (152 kN) |
| Max Dumping Clearance | 21.1 ft in (6431.28 mm) |
| Max Digging Reach On Ground | 31.11 ft in (9482.33 mm) |
| Arm Crowd Force-Iso | 31922.87 lb (142 kN) |
| Bucket Digging Force - Iso | 38217.52 lb (170 kN) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 32.21 ft in (9814.56 mm) |
| Max Vertical Wall Digging Depth | 20.2 ft in (6156.96 mm) |
| Max Digging Depth | 23 ft in (7010.4 mm) |
| Bucket Digging Force - Sae | 34170.96 lb (152 kN) |
| Arm Crowd Force-Iso | 27426.69 lb (122 kN) |
| Arm Crowd Force-Sae | 26077.84 lb (116 kN) |
| Boom/Stick Option (Hex) 2 | Boom length 9 ft 9 in, arm length 2.98 m |
| Bucket Digging Force - Iso | 38217.52 lb (170 kN) |
| Horizontal Digging Stroke - Ground | 17.3 ft in (5273.04 mm) |
| Max Digging Reach | 33.1 ft in (10088.88 mm) |
| Max Digging Reach On Ground | 33.3 ft in (10149.84 mm) |
| Max Dumping Clearance | 22.7 ft in (6918.96 mm) |
| Min Dumping Clearance | 8.4 ft in (2.57 m) |
| Minimum Swing Radius | 12.1 in (307.34 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 33.6 ft in (10241.29 mm) |
| Max Reach Along Ground | 35.6 ft in (10850.88 mm) |
| Max Vertical Wall Digging Depth | 22.1 ft in (6736.08 mm) |
| Max Digging Depth | 25.2 ft in (7680.96 mm) |
| Arm Crowd Force-Sae | 22705.71 lb (101 kN) |
| Arm Crowd Force-Iso | 23380.13 lb (104 kN) |
| Minimum Swing Radius | 12.1 in (307.34 mm) |
| Boom/Stick Option (Hex) 3 | Boom length 12 ft 0 in , arm length 3.66 m |
| Max Digging Reach | 36 ft in (10972.8 mm) |
| Horizontal Digging Stroke - Ground | 21.3 ft in (6492.24 mm) |
| Max Dumping Clearance | 23.11 ft in (7043.93 mm) |
| Bucket Digging Force - Iso | 38217.52 lb (170 kN) |
| Min Dumping Clearance | 6.2 ft in (1889.76 mm) |
| Bucket Digging Force - Sae | 34170.96 lb (152 kN) |
Dimensions
| Ground Clearance | 18.11 ft in (5516.88 mm) |
| Height To Top Of Cab | 10.2 ft in (3108.96 mm) |
| Tail Swing Radius | 10.2 ft in (3108.96 mm) |
| Ground Pressure | 7.3 psi (50.34 kPa) |
| Overall Length Of Crawler | 15.3 ft in (4663.44 mm) |
| Overall Width -Upper Structure | 9.9 ft in (3017.52 mm) |
| Gradeability | 70 % |
| Overall Width | 11.1 ft in (3383.28 mm) |
| Shoe Width | 23.6 ft in (7193.28 mm) |
| Overall Height (To Top Of Boom) | 10.12 ft in (3084.58 mm) |
| Overall Length | 33.8 ft in (10302.24 mm) |
Undercarriage
| Track Gauge | 8.6 ft in (2621.29 mm) |
| Drawbar Pull | 54900 lb (244.21 kN) |
| Number Of Shoes Per Side | 51 |
| Max Travel Speed | 2.24 mph (3.6 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | HINO J05E-TI |
| Engine Type | Direct injection |
| Net Power | 183.8 hp (137 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 482.4 lb ft (654 Nm) |
| Displacement | 312.7 cu in (5.2 L) |
| Bore | 4.5 in (112 mm) |
| Stroke | 5.2 in (130 mm) |
Operational
| Operating Weight | 123966 lb (56230 kg) |
| Fuel Capacity | 121.6 gal (460 L) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Hydraulic System Fluid Capacity | 74 gal (280 L) |
| Engine Oil Capacity | 5.6 gal (21 L) |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
Swing Mechanism
| Swing Motor | Axial piston motor |
| Swing Speed | 10.2 rpm |
Bucket
| Bucket Weight | 1543.3 lb (700 kg) |
Hydraulic System
| Power Boost | 5480 psi (37783.3 kPa) |
| Max. Discharge Flow | 130 gal/min (492 L/min) |
| Travel Circuit | 4970 psi (34267 kPa) |
| Swing Circuit | 3920 psi (27027.5 kPa) |
| Pump Type | Two variable displacement pumps + 1 gear pump |
Bucket
| Bucket Capacity - Heaped | 1.1 yd3 (0.8 m3) |
| Bucket Capacity - Struck | 0.8 yd3 (0.6 m3) |
