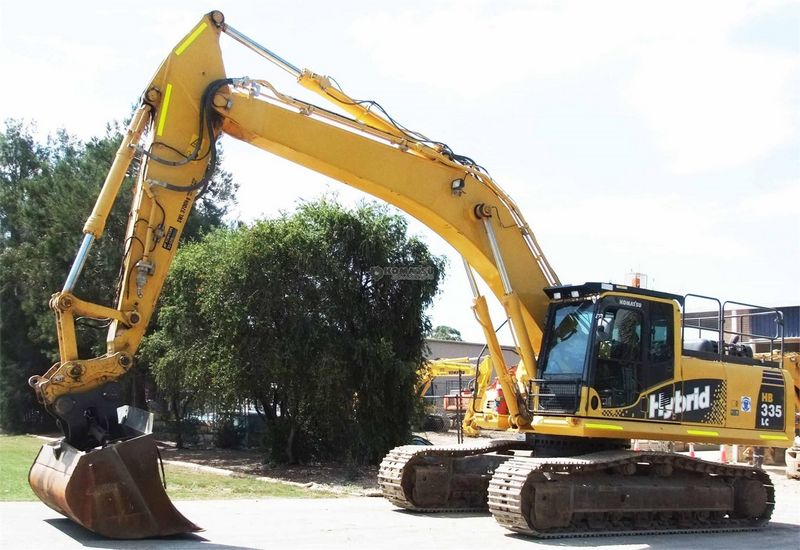

Komatsu HB335LC-1
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Tail Swing Radius | 11.31 ft in (3445 mm) |
| Track Gauge | 8.5 ft in (2590 mm) |
| Grouser Height | 0.12 ft in (36 mm) |
| Machine Cab Height | 9.03 ft in (2750 mm) |
| Machine Cab Width | 9.83 ft in (2995 mm) |
| Width Of Crawler | 10.8 ft in (3290 mm) |
| Ground Clearance (Minimum) | 1.65 ft in (500 mm) |
| Ground Clearance, Counterweight | 3.89 ft in (1185 mm) |
| Overall Length | 36.57 ft in (11145 mm) |
| Overall Track Width | 10.47 ft in (3190 mm) |
| Shoe Width | 2.3 ft in (700 mm) |
| Track Length | 16.26 in (4955 mm) |
| Track Length On Ground | 13.23 ft in (4030 mm) |
| Distance, Swing Center To Rear End | 11.18 ft in (3405 mm) |
| Overall Height | 10.78 ft in (3285 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Number Of Track Rollers(Each Side) | 8 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes (Each Side) | 48 |
| Track Adjuster | Hydraulic |
| Shoe Type | triple grouser |
Engine
| Horsepower, Gross-Sae J1995 | 270.9 hp (202 kw) |
| Horsepower, Net-Iso 9249 | 253.5 hp (189 kw) |
| Horsepower, Net-Sae J1349 | 253.5 hp (189 kw) |
| Fan Drive Method | Mechanical |
| Number Of Cylinders | 6 |
| Engine Model | Komatsu SAA6D114E-5 |
| Engine Type | Water-cooled, 4-cycle, direct injection |
| Governor | All-speed control, electronic |
| Power Measured @ | 1950 rpm |
| Displacement | 540.1 cu in (8.9 L) |
| Aspiration | Turbocharged, aftercooled, cooled EGR |
| Bore | 4.5 in (114 mm) |
| Stroke | 5.8 in (145 mm) |
Driveline
| Drawbar Pull, Maximum | 65256.9 lb (29600 kg) |
| Gradeability | 70 % |
| Travel Speeds | 3.5 mph (5.5 km/h) |
Capacities
| Coolant (Hybrid) | 3.1 gal (11.7 L) |
| Swing Drive | 4.2 gal (15.6 L) |
| Swing Motor | 0.8 gal (3 L) |
| Generator Motor | 2.3 gal (8.5 L) |
| Fuel Tank | 159.9 gal (605 L) |
| Hydraulic Tank | 49.7 gal (188 L) |
| Final Drive | 2.4 gal (9 L) |
| Engine Coolant | 11.1 gal (42 L) |
Operational
| Bucket Size | 2.4 yd3 (1.8 m3) |
| Boom Size | 21.3 ft in (6.5 m) |
| Boom Type | Heavy Duty |
| Arm Size | 10.5 ft in (3.2 m) |
| Maximum Reach @ Ground Level | 35.9 ft in (10920 mm) |
| Arm Crowd Force – Iso | 17400 kgf |
| Digging Reach – Maximum | 36.5 ft in (11100 mm) |
| Digging Depth – Maximum | 24.3 ft in (7380 mm) |
| Arm Type | Heavy Duty |
| Bucket Crowd Force – Iso | 23100 kgf |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Weights
| Operating Weight | 79807.4 lb (36200 kg) |
| Bucket Weight - Kga Gp | 3108.6 lb (1410 kg) |
| Quick Hitch Weight – Kga | 1064.9 lb (483 kg) |
Hydraulic System
| Hydraulic System Type | HydrauMind System |
| Selectable Work Modes | 6 |
| Economy Sub-Mode Selections | 4 |
| Main Pump Type | Variable displacement piston |
| Maximum Flow Rate | 141.4 gal/min (535 L/min) |
