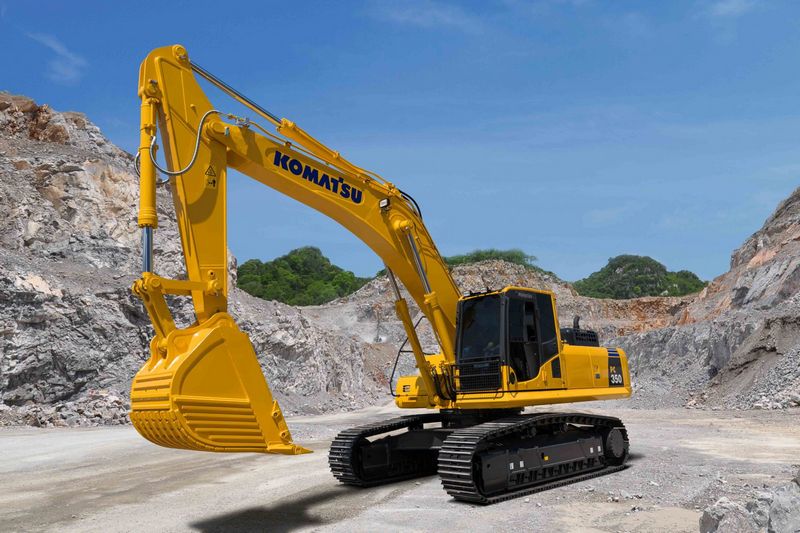

Komatsu PC350LC-8M0
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 2.12 ft in (644 mm) |
| Tail Swing Radius | 11.32 ft in (3450 mm) |
| Track Gauge | 8.9 ft in (2710 mm) |
| Grouser Height | 0.12 ft in (36 mm) |
| Machine Cab Height | 8.63 ft in (2630 mm) |
| Machine Cab Width | 10.14 ft in (3090 mm) |
| Width Of Crawler | 10.86 ft in (3310 mm) |
| Ground Clearance (Minimum) | 2.12 ft in (644 mm) |
| Ground Clearance, Counterweight | 4.04 ft in (1230 mm) |
| Overall Track Width | 10.86 ft in (3310 mm) |
| Shoe Width | 1.97 ft in (600 mm) |
| Track Length | 16.26 in (4955 mm) |
| Track Length On Ground | 13.23 ft in (4030 mm) |
| Distance, Swing Center To Rear End | 11.18 ft in (3405 mm) |
| Overall Height | 10.78 ft in (3285 mm) |
| Overall Length | 36.55 ft in (11140 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 48 |
| Track Adjuster | Hydraulic |
Engine
| Horsepower, Gross-Sae J1995 | 260.2 hp (194 kw) |
| Horsepower, Net-Iso 9249 | 250.8 hp (187 kw) |
| Horsepower, Net-Sae J1349 | 250.8 hp (187 kw) |
| Fan Drive Method | Mechanical |
| Number Of Cylinders | 6 |
| Engine Model | Komatsu SAA6D114E-3 |
| Power Measured @ | 1950 rpm |
| Displacement | 504.7 cu in (8.3 L) |
Driveline
| Drawbar Pull, Maximum | 59304.4 lb (26900 kg) |
| Gradeability | 70 % |
| Travel Speeds | 3.5 mph (5.5 km/h) |
Capacities
| Swing Drive | 4.4 gal (16.5 L) |
| Fuel Tank | 159.9 gal (605 L) |
| Hydraulic Tank | 49.7 gal (188 L) |
| Final Drive | 2.4 gal (9 L) |
| Engine Oil | 9.8 gal (37 L) |
| Engine Coolant | 8.2 gal (31 L) |
Operational
| Boom Size | 21227.1 ft in (6470 m) |
| Boom Type | Heavy Duty |
| Arm Size | 10449.5 ft in (3185 m) |
| Arm Crowd Force – Iso | 17400 kgf |
| Arm Type | Heavy Duty |
| Bucket Crowd Force – Iso | 23200 kgf |
| Bucket Size – Kga Standard Gp | 2.4 yd3 (1.8 m3) |
| Digging Depth – Maximum | 24.3 ft in (7380 mm) |
| Digging Reach – Maximum | 36.5 ft in (11100 mm) |
| Maximum Reach @ Ground Level | 35.9 ft in (10920 mm) |
| Swing Radius | 11.4 ft in (3450 mm) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Weights
| Bucket Weight - Kga Gp | 3108.6 lb (1410 kg) |
| Quick Hitch Weight – Kga | 1064.9 lb (483 kg) |
| Total Operating Weight | 80027.8 lb (36300 kg) |
Hydraulic System
| Hydraulic System Type | HydrauMind System |
| Selectable Work Modes | 6 |
| Economy Sub-Mode Selections | 4 |
| Main Pump Type | Variable displacement piston |
| Maximum Flow Rate | 141.4 gal/min (535 L/min) |
