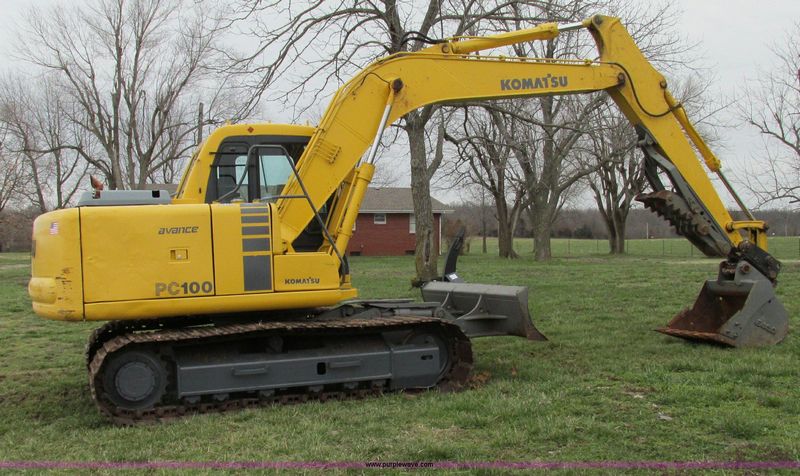

Komatsu PC100
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.56 ft in (7180 mm) |
| Max Cutting Height | 23.53 ft in (7170 mm) |
| Max Loading Height | 16.34 ft in (4980 mm) |
| Max Reach Along Ground | 23.53 ft in (7170 mm) |
| Max Vertical Wall Digging Depth | 12.87 ft in (3920 mm) |
| Max Digging Depth | 15.1 ft in (4600 mm) |
| Boom/Stick Option (Hex) 1 | Boom 14'0" (4260mm)/Stick 6'7" (2002mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 23.92 ft in (7290 mm) |
| Max Loading Height | 16.77 ft in (5110 mm) |
| Max Reach Along Ground | 24.71 ft in (7530 mm) |
| Max Vertical Wall Digging Depth | 13.85 ft in (4220 mm) |
| Max Digging Depth | 16.41 ft in (5000 mm) |
| Boom/Stick Option (Hex) 2 | Boom 14'0" (4260mm)/Stick 7'10" (2400mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 24.22 ft in (7380 mm) |
| Max Loading Height | 17.1 ft in (5210 mm) |
| Max Reach Along Ground | 25.99 ft in (7920 mm) |
| Max Vertical Wall Digging Depth | 14.97 ft in (4560 mm) |
| Max Digging Depth | 17.89 ft in (5450 mm) |
| Boom/Stick Option (Hex) 3 | Boom 14'0" (4260mm)/Stick 9'4" (2850mm) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Height To Top Of Cab | 8.78 ft in (2675 mm) |
| Width To Outside Of Tracks | 7.55 ft in (2300 mm) |
| Length Of Track On Ground | 7.68 ft in (2340 mm) |
| Tail Swing Radius | 7.3 ft in (2225 mm) |
| Removal Counterweight Clearance | 2.99 ft in (910 mm) |
Undercarriage
| Track Gauge | 5.98 ft in (1820 mm) |
| Shoe Size | 18.9 in (480 mm) |
| Max Travel Speed | 2.12 mph (3.4 km/h) |
| Ground Pressure | 5.97 psi (41.17 kPa) |
Engine
| Engine Make | 2238 |
| Engine Model | S4D 105-5 |
| Gross Power | 81 hp (60.5 kw) |
| Displacement | 264 cu in (4.4 L) |
Operational
| Operating Weight | 23148 lb (10499.8 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 38.4 gal (145 L) |
| Hydraulic System Relief Valve Pressure | 2500 psi (17236.9 kPa) |
| Hydraulic Pump Flow Capacity | 65.6 gal/min (248 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
