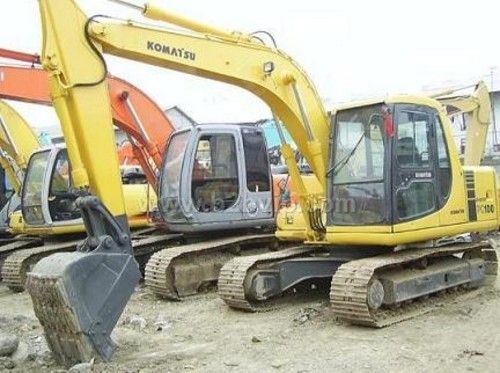

Komatsu PC100-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.53 ft in (7170 mm) |
| Shipping Height Of Unit | 8.91 ft in (2715 mm) |
| Max Cutting Height | 25.42 ft in (7745 mm) |
| Max Loading Height | 17.95 ft in (5470 mm) |
| Max Reach Along Ground | 24 ft in (7315 mm) |
| Max Vertical Wall Digging Depth | 14.01 ft in (4270 mm) |
| Max Digging Depth | 15.62 ft in (4760 mm) |
| Boom/Stick Option (Hex) 1 | Boom 14'0" (4260mm)/Stick 6'9" (2060mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 23.53 ft in (7170 mm) |
| Max Cutting Height | 26.15 ft in (7970 mm) |
| Shipping Height Of Unit | 8.95 ft in (2725 mm) |
| Max Loading Height | 18.71 ft in (5700 mm) |
| Max Reach Along Ground | 24.91 ft in (7590 mm) |
| Max Vertical Wall Digging Depth | 14.77 ft in (4500 mm) |
| Max Digging Depth | 16.61 ft in (5060 mm) |
| Boom/Stick Option (Hex) 2 | Boom 14'0" (4260mm)/Stick 7'9" (2360mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 23.25 ft in (7085 mm) |
| Max Cutting Height | 26.51 ft in (8080 mm) |
| Max Loading Height | 19.12 ft in (5825 mm) |
| Shipping Height Of Unit | 10.11 ft in (3080 mm) |
| Max Reach Along Ground | 26.33 ft in (8025 mm) |
| Max Vertical Wall Digging Depth | 16.82 ft in (5125 mm) |
| Max Digging Depth | 18.25 ft in (5560 mm) |
| Boom/Stick Option (Hex) 3 | Boom 14'0" (4260mm)/Stick 9'5" (2860mm) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Height To Top Of Cab | 8.91 ft in (2715 mm) |
| Width To Outside Of Tracks | 8.08 ft in (2460 mm) |
| Length Of Track On Ground | 8.45 ft in (2575 mm) |
| Tail Swing Radius | 6.99 ft in (2130 mm) |
| Removal Counterweight Clearance | 2.81 ft in (855 mm) |
Undercarriage
| Track Gauge | 6.44 ft in (1960 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Ground Pressure | 5.4 psi (37.24 kPa) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D102E |
| Gross Power | 80.5 hp (60 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 239.3 cu in (4 L) |
Operational
| Operating Weight | 23699.7 lb (10750 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Hydraulic System Relief Valve Pressure | 4620 psi (31853.8 kPa) |
| Hydraulic Pump Flow Capacity | 57.1 gal/min (216 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
