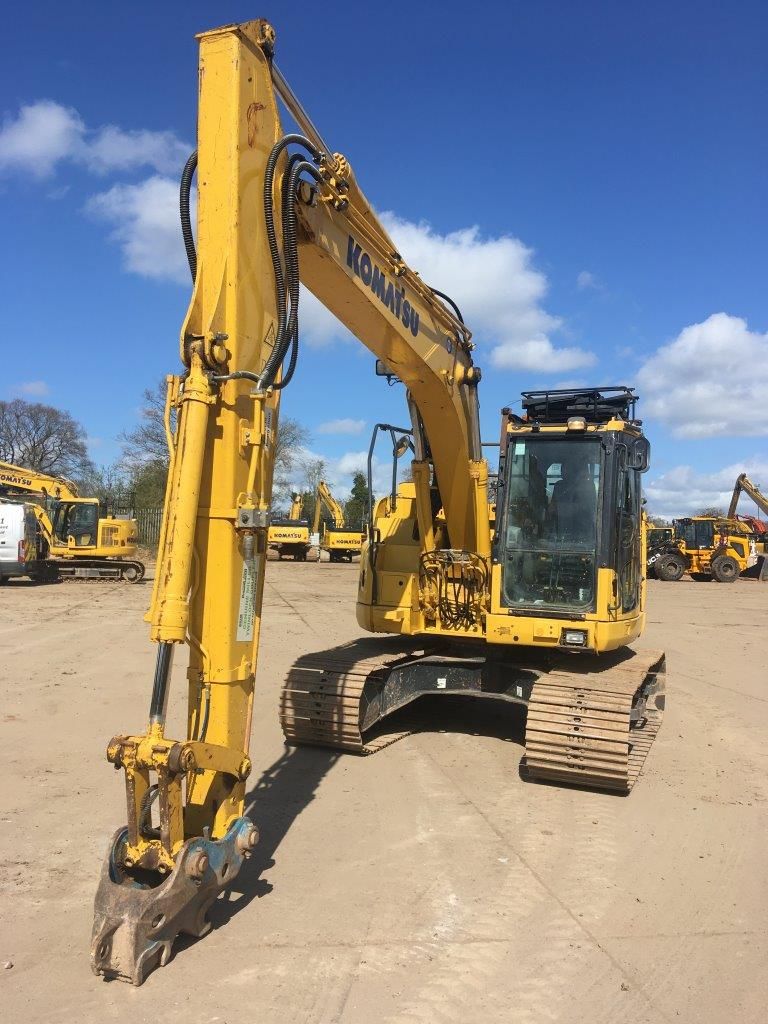

Komatsu PC138US-10
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.3 ft in (395 mm) |
| Height To Top Of Cab | 9.24 ft in (2815 mm) |
| Length Of Track On Ground | 11.85 ft in (3610 mm) |
| Tail Swing Radius | 4.86 ft in (1480 mm) |
| Removal Counterweight Clearance | 2.96 ft in (900 mm) |
Undercarriage
| Number Of Carrier Rollers Per Side | 7 |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
| Drawbar Pull | 27557.79 lb (122.59 kN) |
| Number Of Shoes Per Side | 43 |
| Number Of Track Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D95LE-6 |
| Net Power | 93.5 hp (69.8 kw) |
| Gross Power | 97.3 hp (72.6 kw) |
| Power Measured @ | 2050 rpm |
| Displacement | 199 cu in (3.3 L) |
Operational
| Operating Weight | 32782.8 lb (14870 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Cooling System Fluid Capacity | 4.7 gal (17.7 L) |
| Hydraulic System Fluid Capacity | 18.3 gal (69 L) |
| Engine Oil Capacity | 3.1 gal (11.5 L) |
| Swing Drive Fluid Capacity | 0.7 gal (2.5 L) |
Swing Mechanism
| Swing Speed | 11 rpm |
| Swing Torque | 24339.6 lb ft (33000 Nm) |
