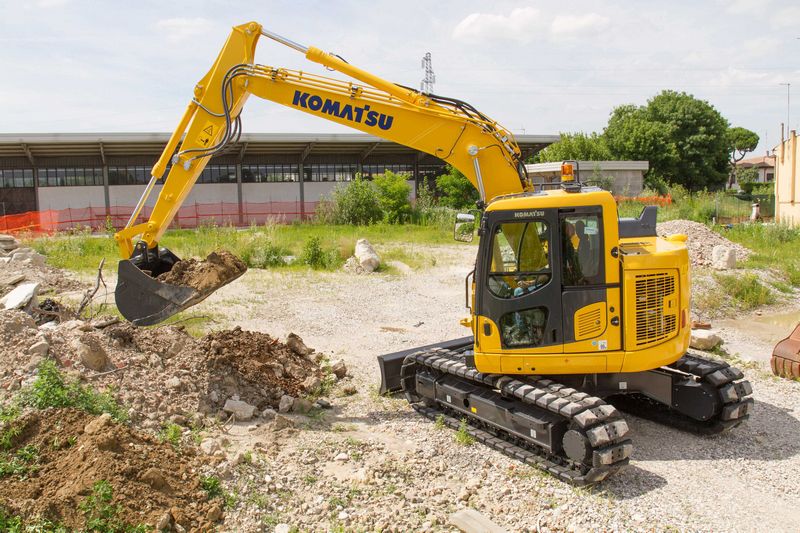

Komatsu PC138US-11
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.82 ft in (7260 mm) |
| Shipping Height Of Unit | 9.36 ft in (2850 mm) |
| Max Cutting Height | 30.65 ft in (9340 mm) |
| Max Loading Height | 22.45 ft in (6840 mm) |
| Max Reach Along Ground | 26.84 ft in (8180 mm) |
| Max Vertical Wall Digging Depth | 16.08 ft in (4900 mm) |
| Max Digging Depth | 17.98 ft in (5480 mm) |
| Boom/Stick Option (Hex) 1 | (Mono Boom) Arm - 2.5 m |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 23.5 ft in (7160 mm) |
| Max Cutting Height | 31.83 ft in (9700 mm) |
| Shipping Height Of Unit | 10.54 ft in (3210 mm) |
| Max Loading Height | 24.12 ft in (7350 mm) |
| Max Reach Along Ground | 28.22 ft in (8600 mm) |
| Max Vertical Wall Digging Depth | 17.52 ft in (5340 mm) |
| Max Digging Depth | 19.36 ft in (5900 mm) |
| Boom/Stick Option (Hex) 2 | (Mono Boom) Arm - 3.0 m |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 26.58 ft in (8100 mm) |
| Max Cutting Height | 29.96 ft in (9130 mm) |
| Max Loading Height | 22.15 ft in (6750 mm) |
| Max Reach Along Ground | 27.5 ft in (8380 mm) |
| Max Vertical Wall Digging Depth | 14.44 ft in (4400 mm) |
| Max Digging Depth | 18.64 ft in (5680 mm) |
| Boom/Stick Option (Hex) 3 | (Two-Piece Boom) Arm - 2.5 m |
Dimensions
| Ground Clearance | 1.3 ft in (395 mm) |
| Height To Top Of Cab | 9.24 ft in (2815 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 11.85 ft in (3610 mm) |
| Tail Swing Radius | 4.86 ft in (1480 mm) |
| Removal Counterweight Clearance | 2.96 ft in (900 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 43 |
| Drawbar Pull | 27557.79 lb (122.59 kN) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | SAA4D95LE-7 |
| Net Power | 97.3 hp (72.5 kw) |
| Gross Power | 97.4 hp (72.6 kw) |
| Power Measured @ | 2050 rpm |
| Aspiration | Turbocharged |
| Displacement | 199 cu in (3.3 L) |
| Bore | 3.8 in (95 mm) |
| Stroke | 4.6 in (115 mm) |
Operational
| Operating Weight | 30600.2 lb (13880 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Hydraulic System Fluid Capacity | 18.3 gal (69 L) |
| Engine Oil Capacity | 3.1 gal (11.5 L) |
| Swing Drive Fluid Capacity | 0.7 gal (2.5 L) |
| Hydraulic Pump Flow Capacity | 64 gal/min (242 L/min) |
Swing Mechanism
| Swing Speed | 11 rpm |
| Swing Torque | 24339.6 lb ft (33000 Nm) |
