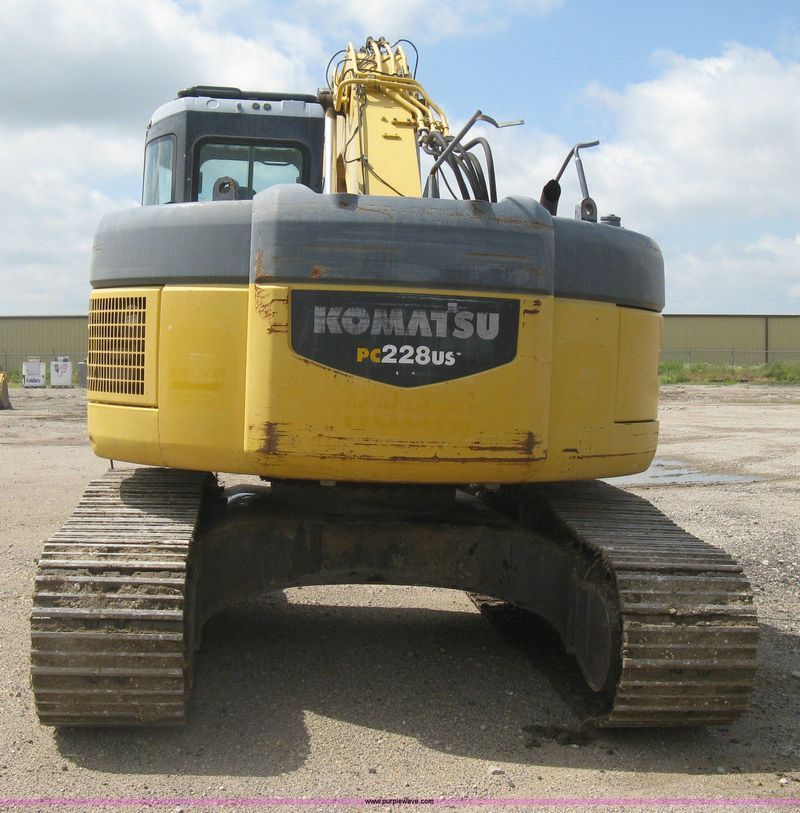

Komatsu PC228US-3
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.54 ft in (8700 mm) |
| Shipping Height Of Unit | 9.89 ft in (3010 mm) |
| Max Cutting Height | 35.11 ft in (10700 mm) |
| Max Loading Height | 25.68 ft in (7825 mm) |
| Max Reach Along Ground | 31.83 ft in (9700 mm) |
| Max Vertical Wall Digging Depth | 19.62 ft in (5980 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Boom/Stick Option (Hex) 1 | boom 5700 mmw/ arm 2925mm |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.88 ft in (3010 mm) |
| Width To Outside Of Tracks | 9.18 ft in (2800 mm) |
| Length Of Track On Ground | 10.73 ft in (3270 mm) |
| Tail Swing Radius | 5.52 ft in (1680 mm) |
| Removal Counterweight Clearance | 3.48 ft in (1060 mm) |
Undercarriage
| Track Gauge | 7.22 ft in (2200 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Drawbar Pull | 45415 lb (202.02 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Shoes Per Side | 45 |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 7.4 psi (51 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D102E |
| Gross Power | 143 hp (107 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 358.9 cu in (5.9 L) |
| Aspiration | Turbocharged with aftercooler |
Operational
| Operating Weight | 48356 lb (21980 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Cooling System Fluid Capacity | 6 gal (22.4 L) |
| Hydraulic System Fluid Capacity | 33.3 gal (126 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Swing Drive Fluid Capacity | 1.8 gal (6.6 L) |
| Hydraulic System Relief Valve Pressure | 5511.5 psi (38000 kPa) |
| Hydraulic Pump Flow Capacity | 113.1 gal/min (428 L/min) |
Swing Mechanism
| Swing Speed | 11 rpm |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.8 m3) |
