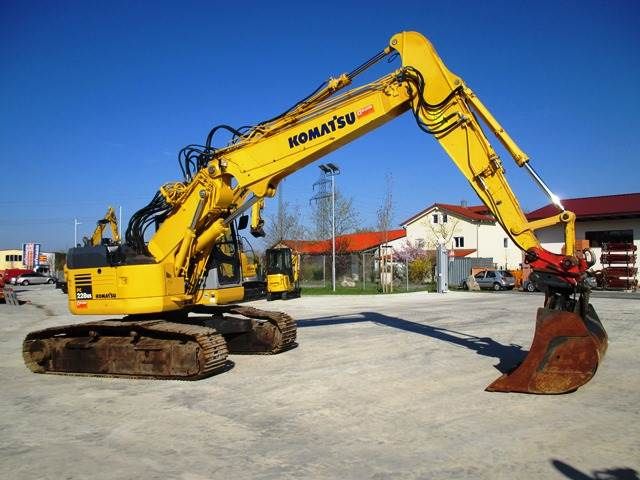

Komatsu PC228USLC-3
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 19.58 ft in (5980 mm) |
| Max Digging Depth | 21.75 ft in (6620 mm) |
| Boom/Stick Option (Hex) 1 | None / 9.58ft 2925mm |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 17.43 ft in (5315 mm) |
| Max Digging Depth | 20 ft in (6095 mm) |
| Boom/Stick Option (Hex) 2 | None / 7.83ft 2400mm |
Dimensions
| Ground Clearance | 1.42 ft in (440 mm) |
| Height To Top Of Cab | 9.92 ft in (3010 mm) |
| Width To Outside Of Tracks | 10.08 ft in (3080 mm) |
| Length Of Track On Ground | 12 ft in (3655 mm) |
| Tail Swing Radius | 5.5 ft in (1680 mm) |
| Removal Counterweight Clearance | 3.5 ft in (1060 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 9 |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Drawbar Pull | 4631063.83 lb (20600 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 49 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D107E-1 |
| Net Power | 148 hp (110 kw) |
| Gross Power | 155 hp (116 kw) |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Displacement | 408 cu in (6.7 L) |
Operational
| Operating Weight | 49900 lb (22630 kg) |
| Fuel Capacity | 84.5 gal (320 L) |
| Cooling System Fluid Capacity | 5.5 gal (21 L) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
| Engine Oil Capacity | 6.1 gal (23.1 L) |
| Swing Drive Fluid Capacity | 1.9 gal (7.1 L) |
Swing Mechanism
| Swing Torque | 4909.3 lb ft (6656 Nm) |
| Swing Speed | 11 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.3 m3) |
