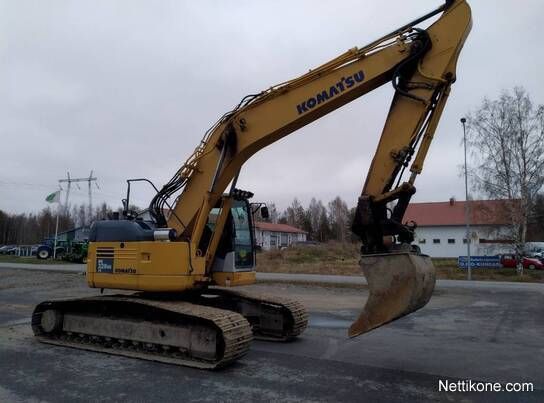

Komatsu PC228USLC-3E0
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 19.62 ft in (5980 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Boom/Stick Option (Hex) 1 | Arm - 2925 mm, 9.7 ft in |
| Bucket Digging Force - Iso | 33496.53 lb (149 kN) |
| Bucket Digging Force - Sae | 31023.64 lb (138 kN) |
| Arm Crowd Force-Iso | 24279.37 lb (108 kN) |
| Minimum Swing Radius | 90.95 in (2310 mm) |
| Max.Dumping Height | 25.68 ft in (7825 mm) |
| Max Digging Reach On Ground | 31.83 ft in (9700 mm) |
| Arm Crowd Force - Sae | 22705.71 lb (101 kN) |
| Max Digging Height | 35.11 ft in (10700 mm) |
| Max Digging Reach | 32.4 ft in (9875 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.96 ft in (3035 mm) |
| Width To Outside Of Tracks | 10.11 ft in (3080 mm) |
| Length Of Track On Ground | 12 ft in (3655 mm) |
| Tail Swing Radius | 5.52 ft in (1680 mm) |
| Track Gauge | 7.81 ft in (2380 mm) |
| Cab Height | 89.97 in (2285 mm) |
| Overall Length | 29.17 ft in (8890 mm) |
| Removal Counterweight Clearance | 3.48 ft in (1060 mm) |
| Shoe Width | 2.3 ft in (700 mm) |
| Track Length | 175.2 in (4450 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 6.83 psi (47.1 kPa) |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 9 |
| Drawbar Pull | 45411.41 lb (202 kN) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | SAA6D107E-1 |
| Gross Power | 155.6 hp (116 kw) |
| Net Power | 147.6 hp (110 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | Turbocharged |
| Displacement | 408.3 cu in (6.7 L) |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Capacities
| Hydraulic Oil Tank | 33.3 gal (126 L) |
| Swing Drive | 1.9 gal (7.1 L) |
| Fuel Tank | 84.6 gal (320 L) |
| Final Drive | 1.4 gal (5.2 L) |
| Engine Oil | 6.2 gal (23.1 L) |
| Coolant | 5.6 gal (21 L) |
Operational
| Operating Weight | 49890.7 lb (22630 kg) |
| Max Speed | 3.5 mph (5.5 km/h) |
| Hydraulic Pump Flow Capacity | 113.1 gal/min (428 L/min) |
Swing Mechanism
| Swing Speed | 11 rpm |
