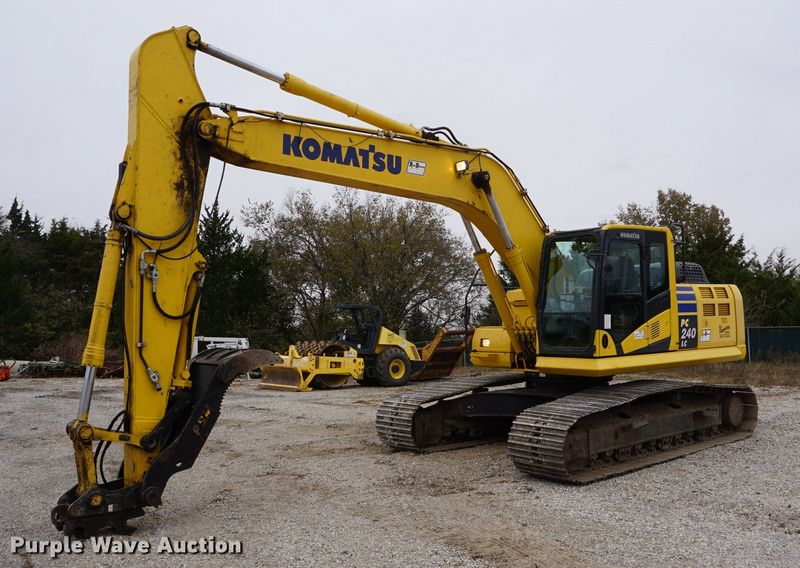

Komatsu PC240LC-10
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 10.03 ft in (3055 mm) |
| Width To Outside Of Tracks | 11.09 ft in (3380 mm) |
| Length Of Track On Ground | 12.62 ft in (3845 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
Undercarriage
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Drawbar Pull | 45349 lb (201.73 kN) |
| Number Of Shoes Per Side | 51 |
| Number Of Track Rollers Per Side | 10 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D107E-2 |
| Net Power | 177 hp (132 kw) |
| Gross Power | 189 hp (141 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 408 cu in (6.7 L) |
Operational
| Operating Weight | 55129 lb (25006.1 kg) |
| Fuel Capacity | 107.7 gal (407.7 L) |
| Cooling System Fluid Capacity | 9.5 gal (36 L) |
| Hydraulic System Fluid Capacity | 34.9 gal (132.2 L) |
| Engine Oil Capacity | 6.1 gal (23.1 L) |
| Swing Drive Fluid Capacity | 2 gal (7.2 L) |
Swing Mechanism
| Swing Speed | 11.7 rpm |
| Swing Torque | 58334 lb ft (79090.3 Nm) |
