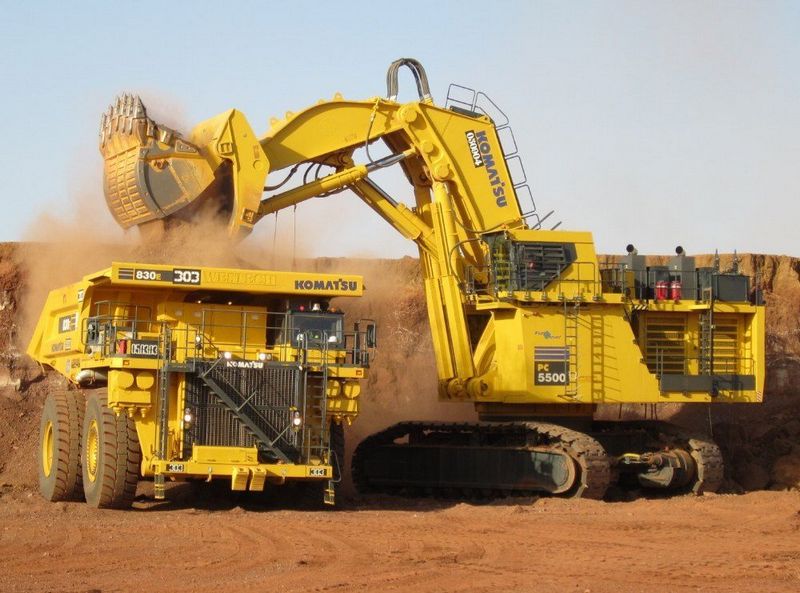

Komatsu PC5500-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Undercarriage
| Number Of Bottom Rollers Per Side | 7 |
| Number Of Top Rollers Per Side | 3 |
| Number Of Track Shoes Per Side | 46 |
| Track Adjustment | Automatic hydraulic type |
Engine
| Horsepower, Net-Iso 9249 | 1260 hp (939.6 kw) |
| Horsepower, Net-Sae J1349 | 1260 hp (939.6 kw) |
| Number Of Cylinders | 12 |
| Engine Model | Komatsu SDA12V159E-2 |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Governor | All-speed, electronic |
| Power Measured @ | 1800 rpm |
| Aspiration | Turbocharged and aftercooled |
| Shovel Capacity | 29 m3 38 yd3 SAE 2:1 heaped |
| Backhoe Capacity | 29 m3 38 yd3 SAE 1:1 heaped |
Driveline
| Travel Speeds | 1.4 mph (2.1 km/h) |
| Gradeability (%) | 50 |
Capacities
| Reserve Engine Oil Make Up Tank | 132 gal (499.7 L) |
| Fuel Tank | 2736 gal (10356.9 L) |
| Hydraulic Tank | 982 gal (3717.3 L) |
| Hydraulic System | 1585 gal (5999.9 L) |
| Engine Oil | 50 gal (189.3 L) |
| Engine Coolant | 95 gal (359.7 L) |
Weights
| Total Operating Weight | 1175063.8 lb (533000 kg) |
