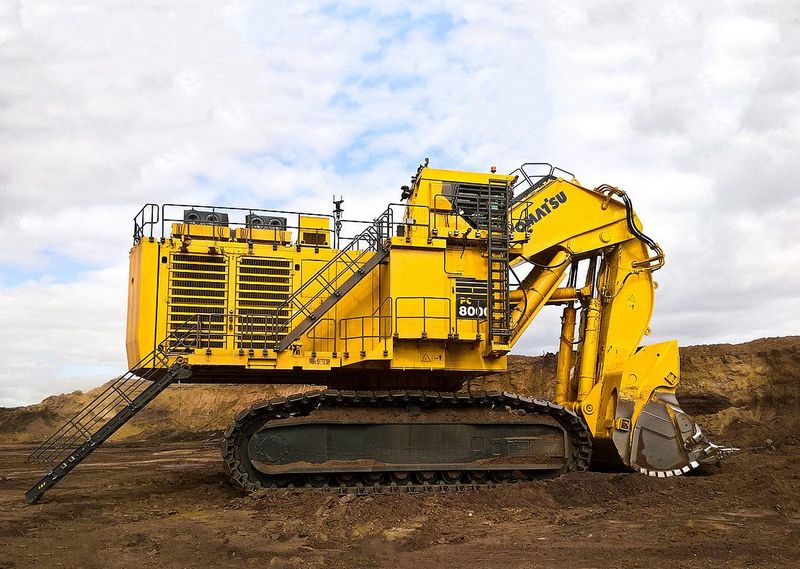

Komatsu PC8000-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 3.76 ft in (1144 mm) |
| Track Length On Ground | 26.07 ft in (7945 mm) |
| Overall Track Width | 29.76 ft in (9070 mm) |
Undercarriage
| Shoe Size | 59.06 in (1500 mm) |
| Number Of Track Shoes Per Side | 49 |
| Number Of Bottom Rollers Per Side | 8 |
| Track Adjustment | Automatic hydraulic type |
| Number Of Top Rollers Per Side | 3 |
Engine
| Horsepower, Net-Iso 9249 | 4023.1 hp (3000 kw) |
| Horsepower, Net-Sae J1349 | 4023.1 hp (3000 kw) |
| Number Of Cylinders | 16 |
| Engine Model | Komatsu SDA16V160E-2 |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Governor | All-speed, electronic |
| Power Measured @ | 1800 rpm |
| Displacement | 7322.9 cu in (120 L) |
| Aspiration | Turbocharged and aftercooled |
| Backhoe Capacity | 42 m3 55 yd3 SAE 2:1 heaped |
| Shovel Capacity | 42 m3 55 yd3 SAE 2:1 heaped |
Driveline
| Travel Speeds | 1.4 mph (2.2 km/h) |
| Gradeability (%) | 55 |
Capacities
| Reserve Engine Oil Make Up Tank | 558 gal (2112.3 L) |
| Fuel Tank | 3680 gal (13930.4 L) |
| Hydraulic Tank | 2050 gal (7760.1 L) |
| Hydraulic System | 3040 gal (11507.7 L) |
| Engine Oil | 154 gal (583 L) |
| Engine Coolant | 228 gal (863.1 L) |
Operational
| Arm Crowd Force – Iso | 180000 kgf |
| Bucket Crowd Force – Iso | 200000 kgf |
| Maximum Reach @ Ground Level | 64.8 ft in (19730 mm) |
| Digging Depth – Maximum | 26.6 ft in (8090 mm) |
| Swing Radius | 28.6 ft in (8710 mm) |
| Bucket Size – Kga Standard Gp | 49.8 yd3 (38 m3) |
Weights
| Total Operating Weight | 1565282 lb (710000 kg) |
Hydraulic System
| Main Pump Type | 8 x Swash Plate Pumps |
| Maximum Flow Rate | 2187.4 gal/min (8280 L/min) |
