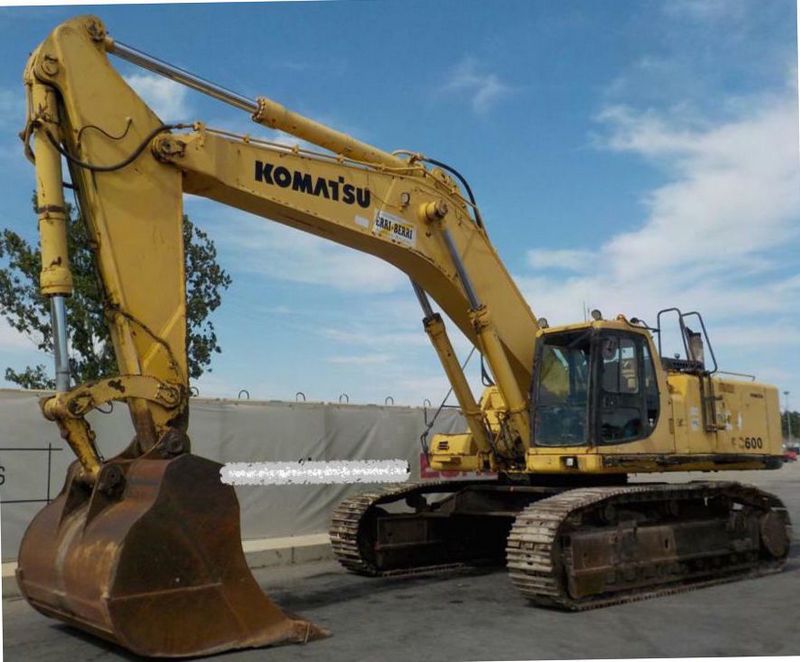

Komatsu PC600-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 40.82 ft in (12440 mm) |
| Shipping Height Of Unit | 14.1 ft in (4300 mm) |
| Max Cutting Height | 38.98 ft in (11880 mm) |
| Max Loading Height | 26.12 ft in (7960 mm) |
| Max Reach Along Ground | 42 ft in (12800 mm) |
| Max Vertical Wall Digging Depth | 24.64 ft in (7510 mm) |
| Max Digging Depth | 27.86 ft in (8490 mm) |
| Boom/Stick Option (Hex) 1 | boom 7600mm w/ stick 3500mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 37.37 ft in (11390 mm) |
| Max Cutting Height | 36.26 ft in (11050 mm) |
| Shipping Height Of Unit | 14.77 ft in (4500 mm) |
| Max Loading Height | 23.63 ft in (7200 mm) |
| Max Reach Along Ground | 36.95 ft in (11260 mm) |
| Max Vertical Wall Digging Depth | 18.18 ft in (5540 mm) |
| Max Digging Depth | 22.97 ft in (7000 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6600mm (21'8") / Stick 2900mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 42.03 ft in (12810 mm) |
| Max Cutting Height | 38.72 ft in (11800 mm) |
| Max Loading Height | 26.12 ft in (7960 mm) |
| Shipping Height Of Unit | 14.11 ft in (4300 mm) |
| Max Reach Along Ground | 42 ft in (12800 mm) |
| Max Vertical Wall Digging Depth | 24.64 ft in (7510 mm) |
| Max Digging Depth | 27.86 ft in (8490 mm) |
| Boom/Stick Option (Hex) 3 | Boom 7660mm (25'2") / Stick 3500mm (11'6") |
Dimensions
| Ground Clearance | 2.56 ft in (780 mm) |
| Height To Top Of Cab | 10.86 ft in (3310 mm) |
| Width To Outside Of Tracks | 12.8 ft in (3900 mm) |
| Length Of Track On Ground | 13.95 ft in (4250 mm) |
| Tail Swing Radius | 12.47 ft in (3800 mm) |
| Removal Counterweight Clearance | 4.48 ft in (1365 mm) |
Undercarriage
| Track Gauge | 10.83 ft in (3300 mm) |
| Shoe Size | 24 in (600 mm) |
| Max Travel Speed | 3.36 mph (5.4 km/h) |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Shoes Per Side | 49 |
| Drawbar Pull | 93255.5 lb (414.83 kN) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | N14 |
| Net Power | 385 hp (287 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 930.1 cu in (15.3 L) |
| Aspiration | Turbocharged with aftercooler |
Operational
| Operating Weight | 275974.7 lb (125180 kg) |
| Fuel Capacity | 232.5 gal (880 L) |
| Cooling System Fluid Capacity | 15.1 gal (57 L) |
| Hydraulic System Fluid Capacity | 97.8 gal (370 L) |
| Engine Oil Capacity | 11.1 gal (42 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal (13.1 L) |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic Pump Flow Capacity | 216.7 gal/min (820 L/min) |
Swing Mechanism
| Swing Speed | 8.3 rpm |
Buckets
| Reference Bucket Capacity | 3.6 yd3 (2.7 m3) |
| Minimum Bucket Capacity | 3.2 yd3 (2.4 m3) |
| Maximum Bucket Capacity | 4.6 yd3 (3.5 m3) |
