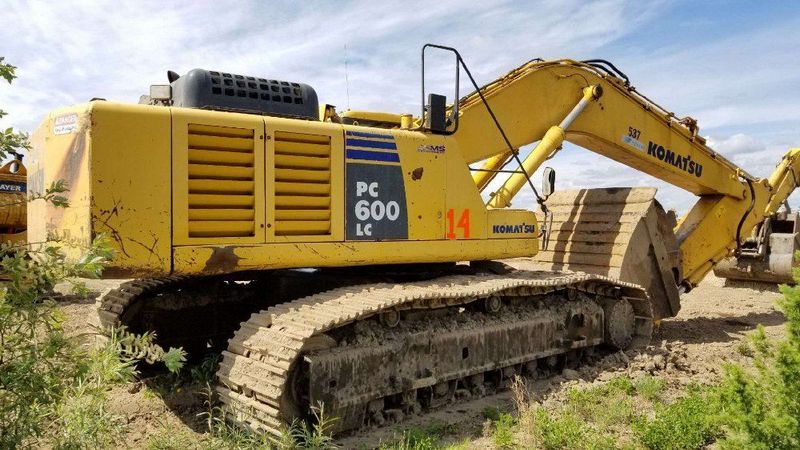

Komatsu PC600LC-8
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 42.36 ft in (12910 mm) |
| Shipping Height Of Unit | 14.11 ft in (4300 mm) |
| Max Cutting Height | 38.98 ft in (11880 mm) |
| Max Loading Height | 26.12 ft in (7960 mm) |
| Max Reach Along Ground | 42 ft in (12800 mm) |
| Max Vertical Wall Digging Depth | 24.64 ft in (7510 mm) |
| Max Digging Depth | 27.86 ft in (8490 mm) |
| Boom/Stick Option (Hex) 1 | Boom 7660mm (25'2") / Stick 3500 mm (11'6") |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 42.1 ft in (12830 mm) |
| Max Cutting Height | 39.97 ft in (12180 mm) |
| Shipping Height Of Unit | 15.28 ft in (4655 mm) |
| Max Loading Height | 27.06 ft in (8245 mm) |
| Max Reach Along Ground | 44.48 ft in (13555 mm) |
| Max Vertical Wall Digging Depth | 27.48 ft in (8375 mm) |
| Max Digging Depth | 30.43 ft in (9275 mm) |
| Boom/Stick Option (Hex) 2 | Boom 7660 mm (25'2") / Stick 4300 mm (14'1") |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 41.13 ft in (12535 mm) |
| Max Cutting Height | 41.21 ft in (12560 mm) |
| Max Loading Height | 28.22 ft in (8600 mm) |
| Shipping Height Of Unit | 17.18 ft in (5235 mm) |
| Max Reach Along Ground | 47.36 ft in (14435 mm) |
| Max Vertical Wall Digging Depth | 30.43 ft in (9275 mm) |
| Max Digging Depth | 33.55 ft in (10225 mm) |
| Boom/Stick Option (Hex) 3 | Boom 7660 mm (25'2") / Stick 5200 mm (17'1") |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 41.15 ft in (12540 mm) |
| Shipping Height Of Unit | 14.05 ft in (4280 mm) |
| Max Cutting Height | 37.65 ft in (11475 mm) |
| Max Loading Height | 25.1 ft in (7650 mm) |
| Max Reach Along Ground | 40.64 ft in (12385 mm) |
| Max Digging Depth | 26.79 ft in (8165 mm) |
| Max Vertical Wall Dig Depth | 21.86 ft in (6660 mm) |
| Boom/Stick Option (Hex) 4 | Boom 7300 mm (23'11") / Stick 3500 mm (11'6") |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 39.15 ft in (11930 mm) |
| Shipping Height Of Unit | 15.1 ft in (4600 mm) |
| Max Cutting Height | 36.55 ft in (11140 mm) |
| Max Loading Height | 23.66 ft in (7210 mm) |
| Max Reach Along Ground | 37.08 ft in (11300 mm) |
| Max Digging Depth | 23.17 ft in (7060 mm) |
| Max Vertical Wall Dig Depth | 18.48 ft in (5630 mm) |
| Boom/Stick Option (Hex) 5 | Boom 6600 mm (21'8") / Stick 2900 mm (9'6") |
Dimensions
| Ground Clearance | 2.58 ft in (780 mm) |
| Height To Top Of Cab | 10.77 ft in (3280 mm) |
| Width To Outside Of Tracks | 11.5 ft in (3490 mm) |
| Length Of Track On Ground | 15.08 ft in (4600 mm) |
| Tail Swing Radius | 12.83 ft in (3900 mm) |
| Removal Counterweight Clearance | 4.5 ft in (1365 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 35.44 in (900 mm) |
| Max Travel Speed | 3 mph (4.91 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 52 |
| Number Of Carrier Rollers Per Side | 3 |
| Drawbar Pull | 93250 lb (415 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-5 |
| Gross Power | 433 hp (323 kw) |
| Net Power | 429 hp (320 kw) |
| Power Measured @ | 1800 rpm |
| Aspiration | turbocharged, aftercooled, cooled EGR |
| Displacement | 930 cu in (15.3 L) |
Operational
| Operating Weight | 128530 lb (58300 kg) |
| Fuel Capacity | 232.5 gal (880 L) |
| Cooling System Fluid Capacity | 15.4 gal (58 L) |
| Hydraulic System Fluid Capacity | 95 gal (360 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 10.6 gal (40 L) |
| Swing Drive Fluid Capacity | 6.8 gal (26 L) |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 216 gal/min (817.7 L/min) |
Swing Mechanism
| Swing Speed | 8.3 rpm |
| Swing Torque | 154481 lb ft (- -) |
Buckets
| Reference Bucket Capacity | 3.6 yd3 (2.7 m3) |
