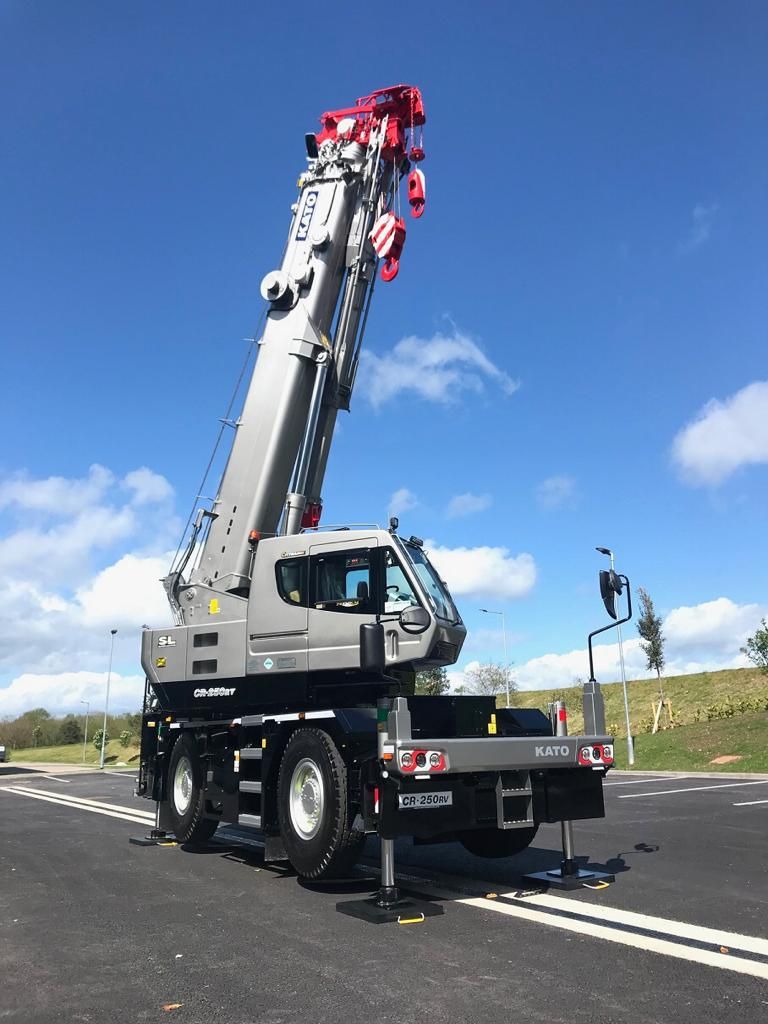

Kato CR250
Browse All Kato or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 26.25 ft in (8 m) |
| Max Height @ Max Raise Angle - No Jib | 101.71 ft in (31 m) |
| Min Working Radius | 9.19 ft in (2.8 m) |
| Max Working Radius | 85.31 ft in (26 m) |
| Max Elevating Angle | 81 degrees |
| Max Lift Capacity | 55115.57 lb (25000 kg) |
| Swing Speed | 2.6 rpm |
| Number Of Sections | 6 |
Dimensions
| Transport Length | 29.75 ft in (9065 mm) |
| Transport Width | 7.86 ft in (2395 mm) |
| Transport Height | 11.16 ft in (3400 mm) |
| Ground Clearance | 1.14 ft in (345 mm) |
| Width W/ Outriggers Extended | 20.67 ft in (6300 mm) |
| Carrier Length | 23.77 ft in (7245 mm) |
| Upper Structure Tail Swing Radius | 7.88 ft in (2400 mm) |
Carrier Engine
| Make | Kato |
| Model | C 6D16-TE1 |
| Gross Power | 211.9 hp (158 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 513.4 lb ft (696 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 460.5 cu in (7.6 L) |
Operational
| Operating Weight | 52911 lb (24000 kg) |
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Upper Structure Hydraulic System Fluid Capacity | 116.3 gal (440 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
| Tire Size | 385/95R25 170E ROAD |
Transmission
| Transmission Type | remote mounted full automatic with transfer gear box |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 30.5 mph (49 km/h) |
