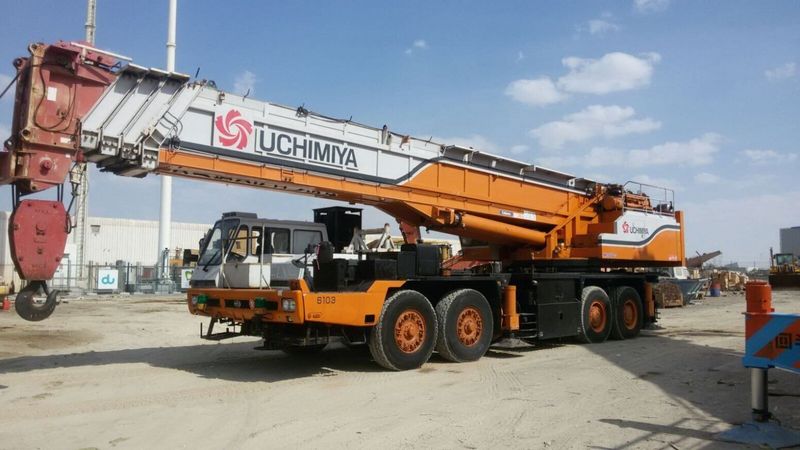

Kato NK1600
Browse All Kato or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 59.06 ft in (18 m) |
| Max Height @ Max Raise Angle - No Jib | 177.17 ft in (54 m) |
| Min Working Radius | 10.5 ft in (3.2 m) |
| Max Working Radius | 154.2 ft in (47 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 352739.64 lb (160000 kg) |
| Swing Speed | 1.4 rpm |
Dimensions
| Transport Length | 54.27 ft in (16540 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Width W/ Outriggers Extended | 28.22 ft in (8600 mm) |
| Upper Structure Tail Swing Radius | 14.21 ft in (4330 mm) |
Upper Structure Engine
| Make | Kato |
| Model | 8DC9 |
| Gross Power | 279 hp (208 kw) |
| Power Measured @ | 1950 rpm |
| Max Torque | 772.3 lb ft (1047 Nm) |
| Torque Measured @ | 1400 rpm |
Carrier Engine
| Make | Kato |
| Model | 8DC9-TL |
| Gross Power | 432 hp (322.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 1161.7 lb ft (1575 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 978.3 cu in (16.1 L) |
Operational
| Operating Weight | 185188.4 lb (84000 kg) |
| Number Of Axels | 7 |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Upper Structure Hydraulic System Fluid Capacity | 356.7 gal (1350 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00-24-24PR |
Transmission
| Number Of Forward Gears | 10 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 47.9 mph (77 km/h) |
