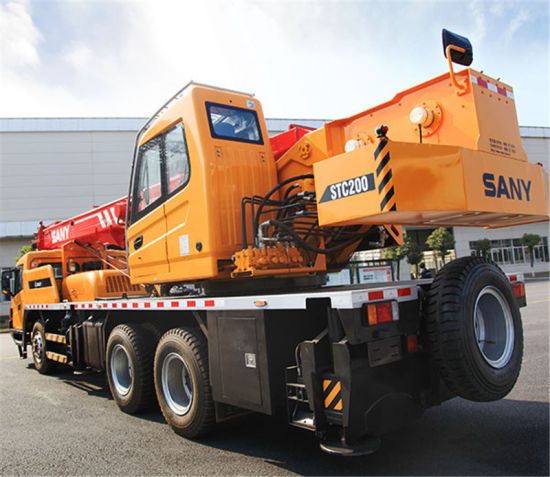

Sany STC200
Browse All Sany or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 34.78 ft in (10.6 m) |
| Max Height @ Max Raise Angle - No Jib | 108.27 ft in (33 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 40.98 ft in (12490 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 12.47 ft in (3800 mm) |
| Ground Clearance | 0.73 ft in (220 mm) |
| Gradeability | 35 % |
| Approach Angle | 18 degrees |
| Angle Of Departure | 11 degrees |
Carrier Engine
| Gross Power | 285.7 hp (213 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 774.5 lb ft (1050 Nm) |
| Torque Measured @ | 1400 rpm |
| Number Of Cylinders | 6 |
| Aspiration | Water-cooled |
Operational
| Operating Weight | 58202.1 lb (26400 kg) |
| Number Of Axels | 3 |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Tire Size | 11.00-20 |
Transmission
| Max Speed - Forward | 49.8 mph (80 km/h) |
