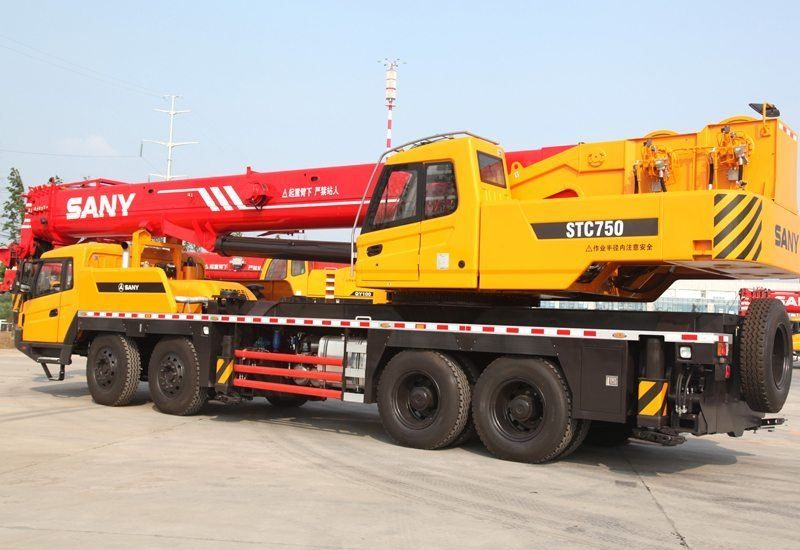

Sany STC750
Browse All Sany or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38.72 ft in (11.8 m) |
| Max Height @ Max Raise Angle - No Jib | 147.64 ft in (45 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 165346.69 lb (75000 kg) |
Dimensions
| Transport Length | 46.26 ft in (14100 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.64 ft in (3850 mm) |
| Ground Clearance | 0.76 ft in (230 mm) |
| Width W/ Outriggers Extended | 24.94 ft in (7600 mm) |
| Carrier Length | 40.59 ft in (12370 mm) |
| Upper Structure Tail Swing Radius | 13.51 ft in (4116 mm) |
| Gradeability | 37 % |
| Approach Angle | 20 degrees - (deletedelete) |
| Angle Of Departure | 12 degrees |
Carrier Engine
| Gross Power | 368.8 hp (275 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1106.4 lb ft (1500 Nm) |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 101412.7 lb (46000 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 92.5 gal (350 L) |
| Operating Voltage | 24 V |
| Tire Size | 12.00R24-20PR |
Transmission
| Max Speed - Forward | 49.8 mph (80 km/h) |
