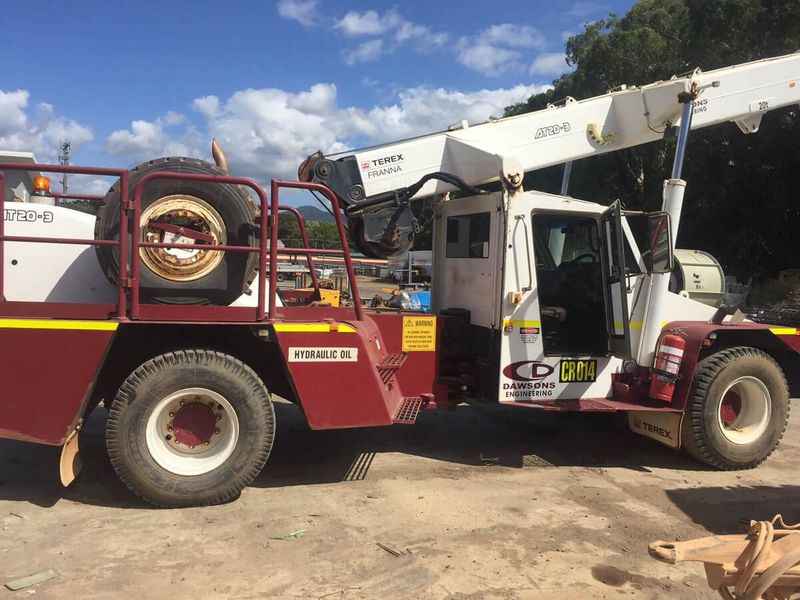

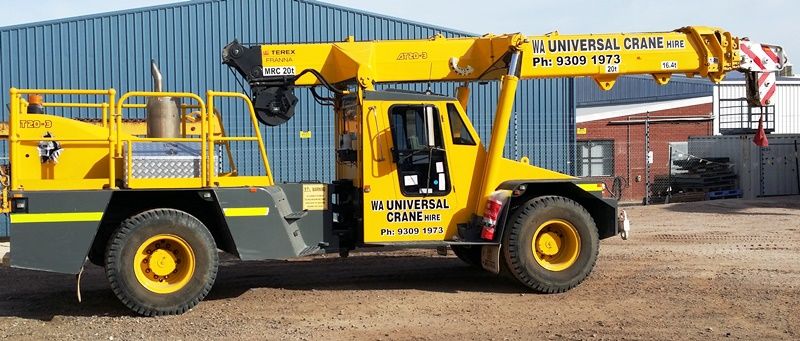

Terex AT20
Browse All Terex or Hydraulic Truck Crane Models
Contents:
Boom
| Min Working Radius | 4.6 ft in (1.4 m) |
| Max Working Radius | 51.84 ft in (15.8 m) |
| Max Elevating Angle | 60 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 44092.45 lb (20000 kg) |
Dimensions
| Transport Length | 31.73 ft in (9670 mm) |
| Transport Width | 8.17 ft in (2490 mm) |
| Transport Height | 10.08 ft in (3070 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Carrier Length | 21.71 ft in (6615 mm) |
Carrier Engine
| Make | Terex |
| Model | OM 906 LA |
| Gross Power | 275 hp (205.1 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Torque Measured @ | 1000 rpm |
Operational
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 76.7 gal (290 L) |
| Carrier Hydraulic System Fluid Capacity | 67.4 gal (255 L) |
| Tire Size | 12.00 x 20 x 18 PR |
Transmission
| Transmission Type | Allison Fully Automatic |
| Number Of Forward Gears | 6 |
| Max Speed - Forward | 52.9 mph (85 km/h) |
