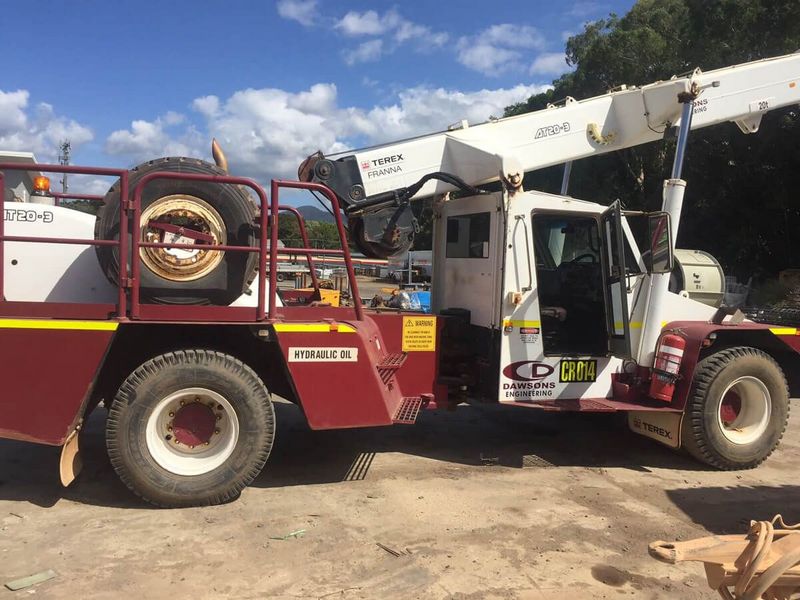

Terex AT-20
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Max Height @ Max Raise Angle - No Jib | 55.78 ft in (17 m) |
| Min Operating Radius | 4.6 ft in (1.4 m) |
| Max Elevating Angle | 60 degrees |
| Max Operating Radius | 51.84 ft in (15.8 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 44092.45 lb (20000 kg) |
Dimensions
| Transport Length | 31.73 ft in (9670 mm) |
| Transport Width | 8.17 ft in (2490 mm) |
| Transport Height | 10.08 ft in (3070 mm) |
| Wheelbase | 14.6 in (4450 mm) |
| Ground Clearance | 0.92 ft in (280 mm) |
| Carrier/Base Length | 21.28 ft in (6485 m) |
Engine
| Engine Make | 2345 |
| Engine Model | OM906LA |
| Net Power | 275 hp (205 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Torque Measured @ | 1000 rpm |
| Aspiration | Turbocharged + intercooled |
Operational
| Fuel Capacity | 76.7 gal (290 L) |
| Hydraulic System Fluid Capacity | 67.4 gal (255 L) |
| Tire Size | 12.00 x 20 x 18 P.R. Bias Ply Duals |
Transmission
| Transmission Type | Allison MD 3060 |
| Number Of Forward Gears | 6 |
| Max Speed - Forward | 52.9 mph (85 km/h) |
