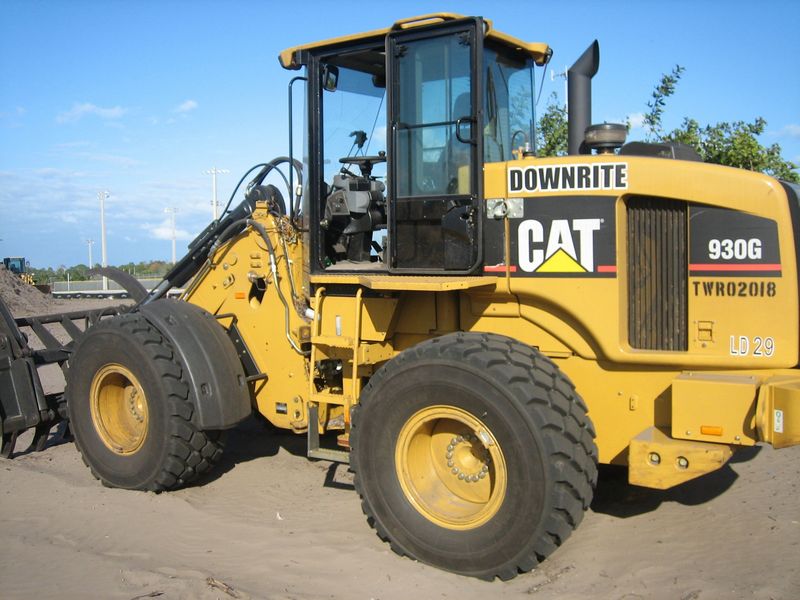

Caterpillar 930G
Browse All Caterpillar or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 24.28 ft in (7399 mm) |
| Width Over Tires | 8.06 ft in (2455 mm) |
| Height To Top Of Cab | 10.76 ft in (3278 mm) |
| Wheelbase | 9.52 ft in (2900 m) |
| Ground Clearance | 1.2 ft in (365.76 mm) |
| Hinge Pin Max Height | 13.29 ft in (4049 mm) |
| Dump Clearance At Max Lift | 9.6 ft in (2926 mm) |
| Max Lift Height | 12.76 ft in (3889 mm) |
| Fork Tine Length | 3.94 ft in (1200 mm) |
| Hook Height At Max Lift - Standard | 22.44 ft in (6837 mm) |
| Hook Height At Max Lift - Extended | 25.39 ft in (7736 mm) |
| Hook Reach At Max Lift - Standard | 7.3 ft in (2225 mm) |
| Hook Reach At Max Lift - Extended | 5.87 ft in (1788 mm) |
| Height - Top Of Rops/Fops | 10.5 ft in (3.21 m) |
| Height - Top Of Hood | 85.2 in (2164.08 mm) |
| Height - Top Of Exhaust Stack | 10.4 ft in (3.17 m) |
| Height - Center Of Axle | 2.1 ft in (0.65 m) |
| Dump Clearance At Maximum Lift - 45 Degrees | 9.1 ft in (2.78 m) |
| Bucket Clearance-Maximum Lift/Carry | 11.5 ft in (3.51 m) |
| Dump Angle At Maximum Lift | 45 degrees |
| Length - Rear Axle To Bumper | 6.4 ft in (1.96 m) |
| Digging Depth | 5 in (127 mm) |
| Length With Out Forks On Ground | 25.14 ft in (7662 mm) |
| Centerline Of Front Axle To Hitch | 4.7 ft in (1.44 m) |
| Overall Height | 16.9 ft in (5151.12 mm) |
| Overall Height - Bucket Raised | 16.9 ft in (5.16 m) |
| Overall Length | 23.6 ft in (7193.28 mm) |
| Rack Back Angle - Carry | 51 degrees |
| Rack Back Angle - Ground | 50 degrees |
| Rack Back Angle - Maximum Lift | 58 degrees |
| Reach At Max Height And Dump | 3.55 ft in (1082 mm) |
| Reach At Maximum Lift And 45 Degrees Dump | 3.6 ft in (1.1 m) |
| Wheel Base | 9.2 ft in (2.81 m) |
| Wheel Base Length | 9.2 ft in (2.81 m) |
| Carry Height | 1.2 ft in (0.37 m) |
| Width - Over Tires | 8 ft in (2.44 m) |
| Bucket Pin Height - Maximum Lift | 12.6 ft in (3.85 m) |
Engine
| Engine Make | 2236 |
| Engine Model | 366 in |
| Gross Power | 161 hp (120 kw) |
| Net Power | 150.2 hp (112 kw) |
| Displacement | 366.2 cu in (6 L) |
| Bore | 4 in (100.1 mm) |
| Stroke | 5 in (127 mm) |
| Rated Net Power | 149 hp (111.2 kw) |
| Sae J1349 (2) | 159 hp (118.6 kw) |
| Iso 9249 (1997) (2) | 161 hp (120.1 kw) |
| Eec 80/1269 (2) | 161 hp (120.1 kw) |
| Sae J1349 (1) | 149 hp (111.2 kw) |
| Iso 9249 (1997) (1) | 150 hp (111.9 kw) |
| Eec 80/1269 (1) | 150 hp (111.9 kw) |
| Maximum Net Power - 2000 Rpm | 159 hp (118.6 kw) |
Operational
| Operating Weight | 27963.5 lb (12684 kg) |
| Fuel Capacity | 59.5 gal (225 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 9.2 gal (34.5 L) |
| Front Diff Fluid Capacity | 6.9 gal (26 L) |
| Rear Diff Fluid Capacity | 6.7 gal (25 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Turning Radius | 17.3 ft in (5257 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Static Tipping Load - Bucket | 20833.7 lb (9450 kg) |
| Static Tipping Load - Forks | 15943.9 lb (7232 kg) |
| Static Tipping Load - Material Handler | 8212.3 lb (3725 kg) |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | countershaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 23.7 mph (38 km/h) |
| Max Speed Reverse | 15.6 mph (25 km/h) |
| Forward - 1 | 4.5 mph (7.3 km/h) |
| Reverse - 1 | 4.5 mph (7.3 km/h) |
Steering
| Steering Angle - Each Direction | 40 degrees |
| Minimum Turning Radius - Over Tires | 207 in (5257.8 mm) |
| Steering Cylinder, Two, Bore | 2.8 in (69.9 mm) |
| Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) | 17.6 gal/min |
| Maximum Working Pressure | 3500 psi |
| Steering Articulation | 40 degrees |
Transmission
| 2 | 7.6 mph (12.3 km/h) |
| 3 | 15 mph (24.2 km/h) |
| 4 | 23.8 mph (38.4 km/h) |
Weights
| Operating Weight | 28725 lb (13029.5 kg) |
Tires
| Tread Width | 7.9 ft in (2.5 m) |
| Size | 17.5-25 12PR L-2 |
Weights
| Optional Counterweight | 1036.2 lb (470 kg) |
| Maximum Weight | 29044 lb (13174.2 kg) |
Buckets
| Bucket Capacities | 2.1 m3 - 5.0 m3 2.6 yd3 - 6.5 yd3 |
| Bucket Width | 8.4 ft in (2.6 m) |
Hydraulic System
| Pump Type | variable-displacement axial piston |
| Relief Valve Setting | 3756.5 psi (25900 kPa) |
| Pump Flow Capacity | 58.2 gal/min (220 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1.7 sec |
| Lower Time | 2.8 sec |
Bucket
| Breakout Force | 30349.3 lb (135 kN) |
Blade
| Width | 8.4 ft in (2550 mm) |
Bucket
| Bucket Capacity - Heaped | 2.8 yd3 (2.1 m3) |
| Bucket Capacity - Struck | 2.3 yd3 (1.7 m3) |
Axles
| Axle Oscillation | 11 degrees |
Operating Specifications
| Static Tipping Load - Full Turn | 18029 lb (8177.9 kg) |
| Dump Clearance | 9.3 ft in (2.9 m) |
| Articulation Angle | 40 degrees |
| Reach - Full Lift And 45 Degrees Dump | 3.6 ft in (1.1 m) |
| Dump Clearance At Full Lift And 45 Degrees Dump Angle | 9.7 ft in (3 m) |
Service Refill Capacities
| Cooling System | 10.6 gal (40.2 L) |
| Fuel Tank | 59.4 gal (224.9 L) |
| Crankcase | 4.2 gal (15.9 L) |
| Hydraulic Tank | 18.5 gal (70.1 L) |
| Hydraulic System - Including Tank | 33 gal (125 L) |
| Transmission | 9.1 gal (34.5 L) |
| Front | 6.9 gal (26.2 L) |
| Rear | 6.6 gal (25 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471-1994 |
| Fops | SAE J/ISO 3449 APR98 Level II, ISO 3449 1992 Level II |
Loader Hydraulic System
| Pump Flow - Implement Pump | 58 gal/min |
| Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) | 58 gal/min |
| Maximum Working Pressure | 3755 psi |
| Raise | 5 s |
| Dump | 1.7 s |
| Lower, Empty, Float Down | 2.8 s |
| Total | 9.5 s |
| Bore (1) | 4.5 in (114.3 mm) |
| Stroke (1) | 30.6 in (777.3 mm) |
| Bore (2) | 6 in (152.4 mm) |
| Stroke (2) | 37 in (939.8 mm) |
| Hydraulic Cycle Time | 9.5sec |
| Relief Pressure - Implement Pump | 3755 psi |
