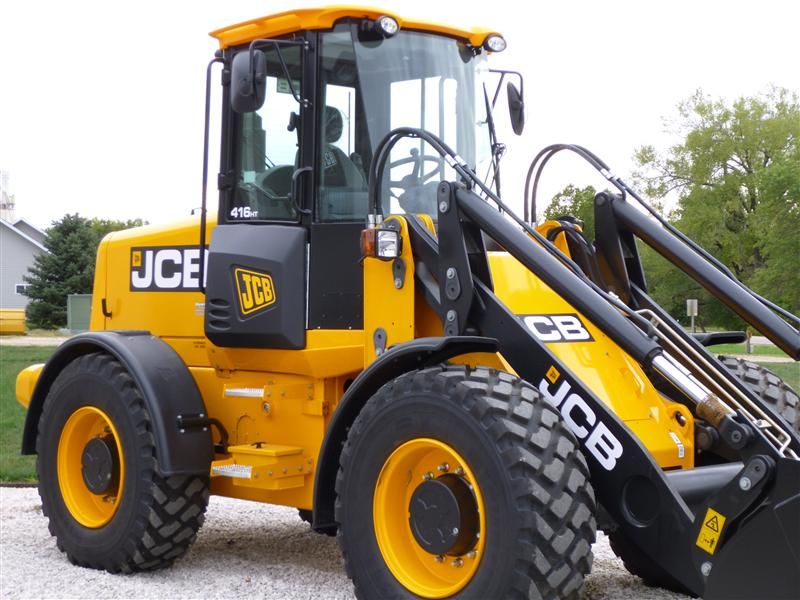

JCB 416HT
Browse All JCB or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 19.99 ft in (6090 mm) |
| Width Over Tires | 7.65 ft in (2330 mm) |
| Height To Top Of Cab | 10.35 ft in (3152 mm) |
| Wheelbase | 9.19 ft in (2800 m) |
| Ground Clearance | 1.47 ft in (448 mm) |
| Hinge Pin Max Height | 11.92 ft in (3633 mm) |
| Dump Clearance At Max Lift | 8.55 ft in (2606 mm) |
| Max Lift Height | 11.34 ft in (3456 mm) |
| Fork Tine Length | 4.01 ft in (1220 mm) |
| Reach At Max Height And Dump | 3.45 ft in (1050 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | DIESEL MAX |
| Gross Power | 125 hp (93 kw) |
| Net Power | 116 hp (86.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 387 lb ft (525 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 269 cu in (4.4 L) |
| Aspiration | Turbocharged wastegated |
Operational
| Operating Weight | 22725 lb (10308 kg) |
| Fuel Capacity | 36.9 gal (140 L) |
| Cooling System Fluid Capacity | 6 gal (23 L) |
| Engine Oil Capacity | 2.8 gal (10.7 L) |
| Transmission Fluid Capacity | 6.8 gal (26 L) |
| Front Diff Fluid Capacity | 6 gal (23 L) |
| Rear Diff Fluid Capacity | 6 gal (23 L) |
| Hydraulic System Fluid Capacity | 33 gal (125 L) |
| Turning Radius | 17.8 ft in (5410 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 25 degrees |
| Static Tipping Load - Bucket | 16472 lb (7472 kg) |
| Static Tipping Load - Forks | 12048 lb (5465 kg) |
| Tire Size | 17.5 x 25 x 12 ply(L2) |
Transmission
| Transmission Type | Smooth shift powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 22.6 mph (36.3 km/h) |
| Max Speed Reverse | 16.3 mph (26.2 km/h) |
Hydraulic System
| Pump Type | Variable displacement piston pump |
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 41.3 gal/min (156 L/min) |
| Raise Time | 4.6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
Bucket
| Breakout Force | 22570 lb (100.4 kN) |
| Bucket Capacity - Heaped | 1.8 yd3 (1.4 m3) |
| Bucket Capacity - Struck | 1.6 yd3 (1.2 m3) |
