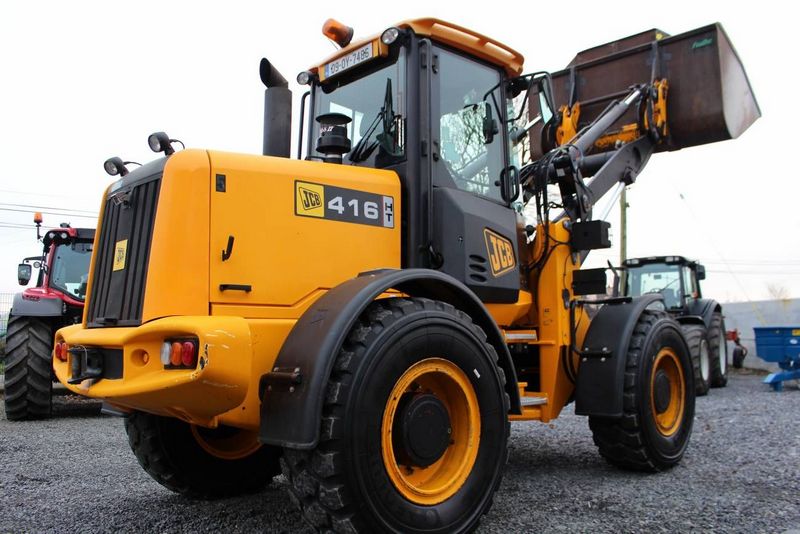

JCB 416HT
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.55 ft in (2606 mm) |
| Breakout Force | 22570.82 lb (100.4 kN) |
| Bucket Capacity - Heaped | 1.84 yd3 (1.4 m3) |
| Bucket Capacity - Struck | 1.55 yd3 (1.18 m3) |
| Bucket Width | 7.88 ft in (2400 mm) |
Dimensions
| Ground Clearance | 1.47 ft in (448 mm) |
| Length With Bucket On Ground | 19.9 ft in (6064 mm) |
| Height To Top Of Cab | 10.35 ft in (3152 mm) |
| Wheelbase | 9.19 ft in (2800 mm) |
| Hinge Pin - Max Height | 11.17 ft in (3404 mm) |
| Reach At Max Lift And Dump | 3.45 ft in (1050 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Net Power | 84.3 hp (62.9 kw) |
| Gross Power | 90.5 hp (67.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 320.2 lb ft (434 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 22396.8 lb (10159 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Engine Oil Fluid Capacity | 2.9 gal (10.7 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Transmission Fluid Capacity | 6.9 gal (26 L) |
| Front Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Rear Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Static Tipping Weight | 13752.5 lb (6238 kg) |
| Turning Radius | 17.8 ft in (5410 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 25 degrees |
| Tire Size | Michelin 17.5R25 XHA (L3) |
Transmission
| Transmission Type | smooth shift powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.6 mph (36.3 km/h) |
| Max Speed - Reverse | 16.3 mph (26.2 km/h) |
Hydraulic System
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 41.3 gal/min (156 L/min) |
| Raise Time | 4.6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
| Pump Type | variable displacement piston pump |
