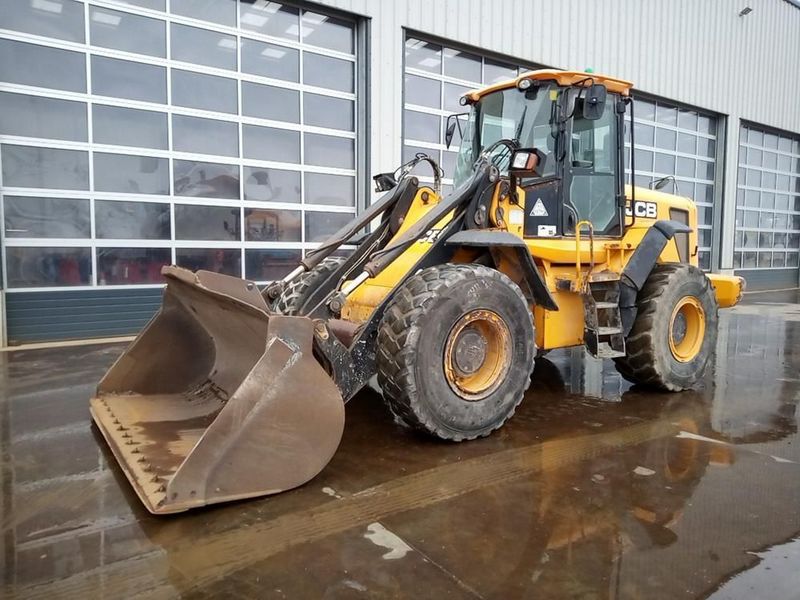

JCB 436HT
Browse All JCB or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 22.73 ft in (6926 mm) |
| Width Over Tires | 8.53 ft in (2597 mm) |
| Height To Top Of Cab | 10.95 ft in (3335 mm) |
| Wheelbase | 9.85 ft in (3000 m) |
| Ground Clearance | 1.51 ft in (459 mm) |
| Hinge Pin Max Height | 13.12 ft in (3996 mm) |
| Dump Clearance At Max Lift | 9.76 ft in (2974 mm) |
| Max Lift Height | 12.56 ft in (3828 mm) |
| Fork Tine Length | 4.01 ft in (1220 mm) |
| Reach At Max Height And Dump | 3.43 ft in (1044 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | BTAA 5.9C |
| Gross Power | 177 hp (132 kw) |
| Net Power | 165 hp (123.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 580 lb ft (786.4 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 32811 lb (14882.9 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Cooling System Fluid Capacity | 9.3 gal (35 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Transmission Fluid Capacity | 8.6 gal (32.5 L) |
| Front Diff Fluid Capacity | 10.4 gal (39 L) |
| Rear Diff Fluid Capacity | 10.4 gal (39 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Turning Radius | 19.3 ft in (5860 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 21 degrees |
| Static Tipping Load - Bucket | 26779.6 lb (12147 kg) |
| Static Tipping Load - Forks | 16907.3 lb (7669 kg) |
| Tire Size | 20.5R25 XHA (L3) |
Transmission
| Transmission Type | Smooth shift powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 23.6 mph (37.9 km/h) |
| Max Speed Reverse | 16.8 mph (27 km/h) |
Hydraulic System
| Pump Type | Twin variable displacement piston pumps |
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 69.8 gal/min (264 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1 sec |
| Lower Time | 3.4 sec |
Bucket
| Breakout Force | 33047 lb (147 kN) |
| Bucket Capacity - Heaped | 3.1 yd3 (2.4 m3) |
| Bucket Capacity - Struck | 2.7 yd3 (2.1 m3) |
