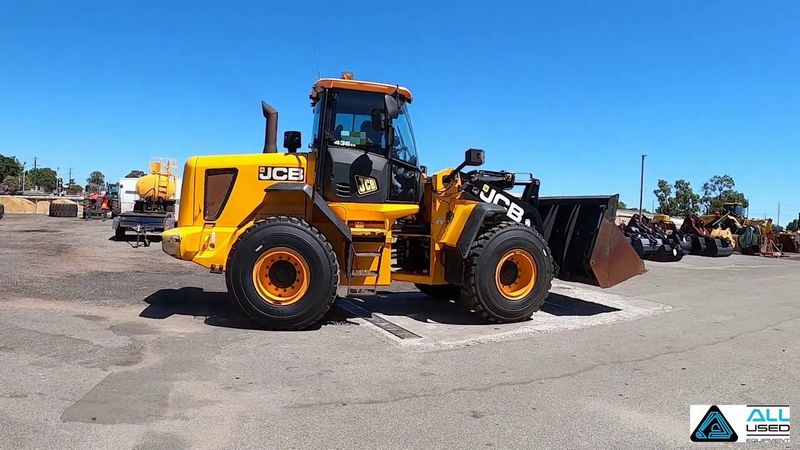

JCB 436ZX
Browse All JCB or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 23.53 ft in (7169 mm) |
| Width Over Tires | 8.53 ft in (2597 mm) |
| Height To Top Of Cab | 10.95 ft in (3335 mm) |
| Wheelbase | 9.85 ft in (3000 m) |
| Ground Clearance | 1.51 ft in (459 mm) |
| Hinge Pin Max Height | 13.12 ft in (3996 mm) |
| Dump Clearance At Max Lift | 9.33 ft in (2843 mm) |
| Max Lift Height | 12.53 ft in (3818 mm) |
| Fork Tine Length | 4.01 ft in (1220 mm) |
| Reach At Max Height And Dump | 4.12 ft in (1254 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB 6.7 |
| Gross Power | 178 hp (132.8 kw) |
| Net Power | 165 hp (123.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 590 lb ft (800 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Aspiration | Turbocharged wastegated |
Operational
| Operating Weight | 35860 lb (16265.9 kg) |
| Fuel Capacity | 61 gal (45.5 L) |
| Cooling System Fluid Capacity | 9 gal (34.1 L) |
| Engine Oil Capacity | 3.7 gal (14.1 L) |
| Transmission Fluid Capacity | 7 gal (26.5 L) |
| Front Diff Fluid Capacity | 10.3 gal (39 L) |
| Rear Diff Fluid Capacity | 9.8 gal (37.1 L) |
| Hydraulic System Fluid Capacity | 55 gal (208.2 L) |
| Turning Radius | 19.4 ft in (5900 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 21 degrees |
| Static Tipping Load - Bucket | 25880 lb (11739 kg) |
| Static Tipping Load - Forks | 18274 lb (8289 kg) |
| Tire Size | Michelin 20.5R25 XHA (L3) |
Transmission
| Transmission Type | Smooth shift powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 23.5 mph (37.9 km/h) |
| Max Speed Reverse | 16.8 mph (27.1 km/h) |
Hydraulic System
| Pump Type | Twin variable displacement piston pumps |
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 69.8 gal/min (264 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1 sec |
| Lower Time | 3.4 sec |
Bucket
| Breakout Force | 39565 lb (176 kN) |
| Bucket Capacity - Heaped | 3 yd3 (2.3 m3) |
| Bucket Capacity - Struck | 2.6 yd3 (2 m3) |
