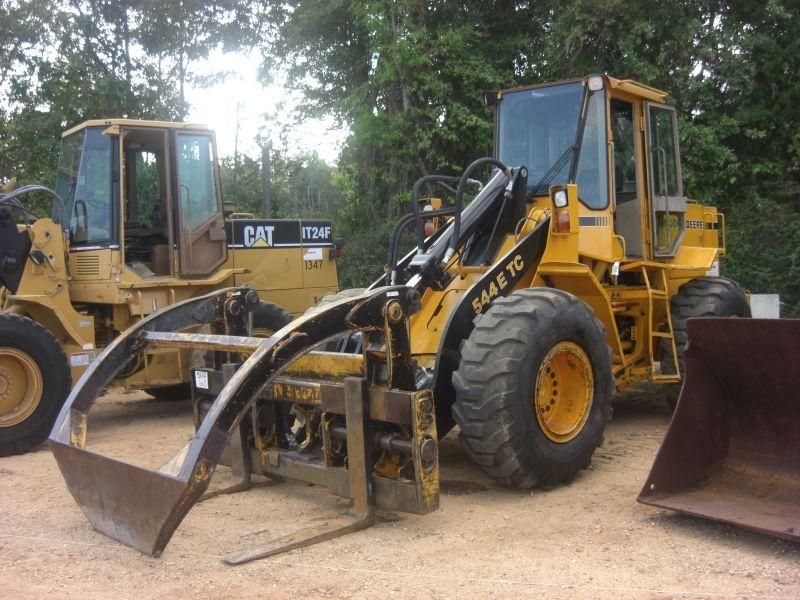

John Deere 544E TC
Browse All John Deere or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 23.3 ft in (7100 mm) |
| Width Over Tires | 7.76 ft in (2365 mm) |
| Height To Top Of Cab | 10.31 ft in (3140 mm) |
| Wheelbase | 9.52 ft in (2900 m) |
| Ground Clearance | 1.28 ft in (390 mm) |
| Hinge Pin Max Height | 12.31 ft in (3750 mm) |
| Dump Clearance At Max Lift | 9.24 ft in (2816 mm) |
| Max Lift Height | 12.49 ft in (3804 mm) |
| Fork Tine Length | 4 ft in (1219 mm) |
| Hook Height At Max Lift - Standard | 17.52 ft in (5338 mm) |
| Hook Height At Max Lift - Extended | 21.51 ft in (6555 mm) |
| Hook Reach At Max Lift - Standard | 11.82 ft in (3601 mm) |
| Hook Reach At Max Lift - Extended | 18.15 ft in (5532 mm) |
| Length With Out Forks On Ground | 25.04 ft in (7630 mm) |
| Reach At Max Height And Dump | 3.49 ft in (1063 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6359T |
| Gross Power | 120 hp (89.5 kw) |
| Net Power | 115 hp (85.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 343 lb ft (465.1 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 24621 lb (11167.9 kg) |
| Fuel Capacity | 55 gal (208.2 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Transmission Fluid Capacity | 2.6 gal (9.5 L) |
| Front Diff Fluid Capacity | 4.3 gal (16 L) |
| Rear Diff Fluid Capacity | 4.3 gal (16 L) |
| Hydraulic System Fluid Capacity | 20.1 gal (76 L) |
| Turning Radius | 16.3 ft in (4950 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 22 degrees |
| Static Tipping Load - Bucket | 16943 lb (7685.3 kg) |
| Static Tipping Load - Forks | 12879 lb (5841.9 kg) |
| Static Tipping Load - Material Handler | 8318 lb (3773 kg) |
| Tire Size | 15.5-25 |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 24.6 mph (39.5 km/h) |
| Max Speed Reverse | 17.2 mph (27.7 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Setting | 2750 psi (18960.6 kPa) |
| Pump Flow Capacity | 46.3 gal/min (175.3 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.9 sec |
| Lower Time | 3.2 sec |
Bucket
| Breakout Force | 20843 lb (92.8 kN) |
| Bucket Capacity - Heaped | 2.3 yd3 (1.8 m3) |
| Bucket Capacity - Struck | 2.1 yd3 (1.7 m3) |
