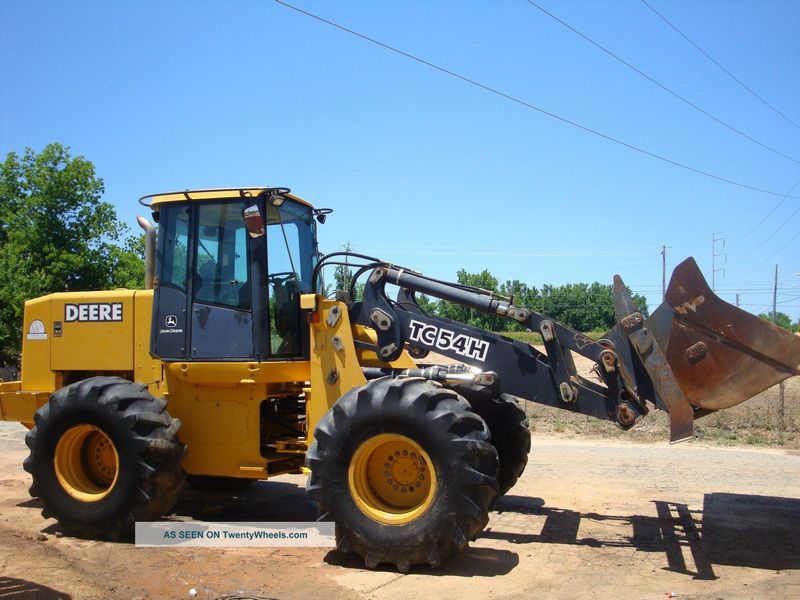

John Deere TC54H
Browse All John Deere or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 24.2 ft in (7365 mm) |
| Width Over Tires | 95.7 ft in (2430 mm) |
| Height To Top Of Cab | 10.58 ft in (3230 mm) |
| Wheelbase | 114 ft in (2900 m) |
| Ground Clearance | 1.7 ft in (424 mm) |
| Dump Clearance At Max Lift | 11.4 ft in (2846 mm) |
| Max Lift Height | 12.3 ft in (3747 mm) |
| Fork Tine Length | 4.01 ft in (1220 mm) |
| Hook Height At Max Lift - Standard | 18.6 ft in (5667 mm) |
| Hook Height At Max Lift - Extended | 22.92 ft in (6983 mm) |
| Hook Reach At Max Lift - Standard | 7.56 ft in (2302 mm) |
| Hook Reach At Max Lift - Extended | 12.02 ft in (3663 mm) |
| Hook Max Reach - Standard | 12.35 ft in (3762 mm) |
| Hook Max Reach - Extended | 18.56 ft in (5655 mm) |
| Height At Hook Max Reach | 6.59 ft in (2006 mm) |
| Length With Out Forks On Ground | 24.89 ft in (7585 mm) |
| Reach At Max Height And Dump | 4.26 ft in (1298 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Gross Power | 138 hp (103 kw) |
| Net Power | 130 hp (97 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 440 lb ft (600 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 26552 lb (12043.8 kg) |
| Fuel Capacity | 65 gal (246.1 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Engine Oil Capacity | 4.8 gal (18 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Diff Fluid Capacity | 5.1 gal (19 L) |
| Rear Diff Fluid Capacity | 5.1 gal (19 L) |
| Hydraulic System Fluid Capacity | 28 gal (106 L) |
| Turning Radius | 16.3 ft in (4959 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 28 degrees |
| Static Tipping Load - Bucket | 17646 lb (8004 kg) |
| Static Tipping Load - Forks | 13404 lb (6080 kg) |
| Static Tipping Load - Material Handler | 8920 lb (4046 kg) |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 25 mph (40 km/h) |
| Max Speed Reverse | 15.5 mph (25 km/h) |
Hydraulic System
| Pump Type | Piston Pump |
| Relief Valve Setting | 3600 psi (24850 kPa) |
| Pump Flow Capacity | 41 gal/min (155.3 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.5 sec |
| Lower Time | 2.8 sec |
Bucket
| Breakout Force | 22806 lb (10345 kN) |
| Bucket Capacity - Struck | 2.6 yd3 (2 m3) |
