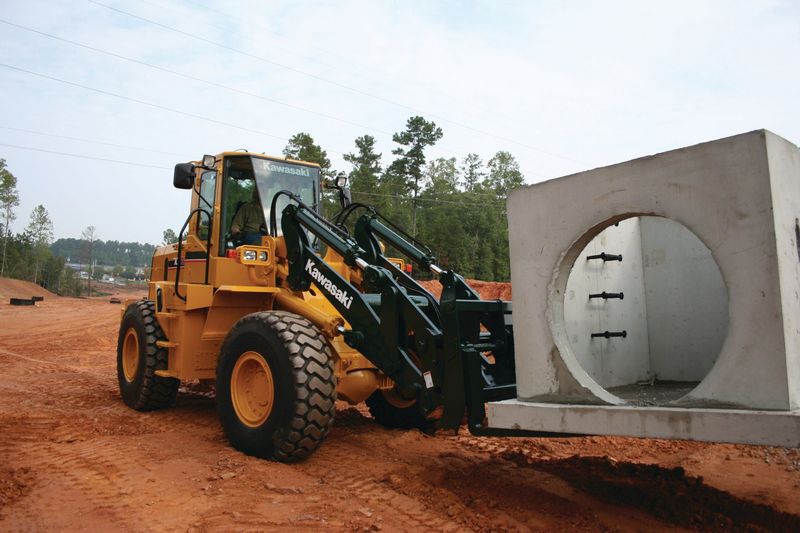

Kawasaki 70TMV-2
Browse All Kawasaki or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 25.53 ft in (7780 mm) |
| Width Over Tires | 8.65 ft in (2635 mm) |
| Height To Top Of Cab | 11.14 ft in (3395 mm) |
| Wheelbase | 10.01 ft in (3050 m) |
| Ground Clearance | 1.46 ft in (445 mm) |
| Dump Clearance At Max Lift | 9.81 ft in (2990 mm) |
| Max Lift Height | 13.26 ft in (4040 mm) |
| Hook Height At Max Lift - Standard | 22.15 ft in (6750 mm) |
| Hook Height At Max Lift - Extended | 31.42 ft in (9575 mm) |
| Hook Reach At Max Lift - Standard | 11.34 ft in (3455 mm) |
| Hook Reach At Max Lift - Extended | 13.85 ft in (4220 mm) |
| Length With Out Forks On Ground | 26.81 ft in (8170 mm) |
| Reach At Max Height And Dump | 3.94 ft in (1200 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Gross Power | 193 hp (144 kw) |
| Net Power | 174 hp (129.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 657 lb ft (890.8 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 409 cu in (6.8 L) |
| Aspiration | turbo charged |
Operational
| Operating Weight | 35566 lb (16132.5 kg) |
| Fuel Capacity | 71.4 gal (270 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Diff Fluid Capacity | 13.3 gal (50 L) |
| Rear Diff Fluid Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Turning Radius | 20.3 ft in (6160 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 11 degrees |
| Static Tipping Load - Bucket | 23170 lb (10509.8 kg) |
| Static Tipping Load - Forks | 24095 lb (10929.4 kg) |
| Static Tipping Load - Material Handler | 12355 lb (5604.2 kg) |
| Tire Size | 23.5x25-16PR (L-3) |
Transmission
| Transmission Type | full power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed Forward | 23.4 mph (37.7 km/h) |
| Max Speed Reverse | 23.6 mph (38 km/h) |
Hydraulic System
| Pump Type | gear type |
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Raise Time | 5.9 sec |
| Dump Time | 1.9 sec |
| Lower Time | 3.1 sec |
Bucket
| Breakout Force | 29300 lb (130.4 kN) |
| Bucket Capacity - Heaped | 3.4 yd3 (2.6 m3) |
| Bucket Capacity - Struck | 3.1 yd3 (2.4 m3) |
